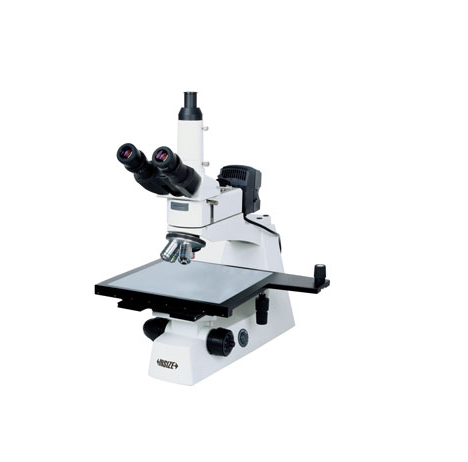

INSIZE 5104-M700 Industrial Inspection Microscope (40X~400X)

Magnification: 40X~400X

Eyepiece (wide field): 10X (view field: ϕ22mm)

Objective (plan achromatic): 4X; 10X; 20X; 40X

Working distance: 17.8mm; 10mm; 5.8mm; 2.9mm

Numerical aperture: 0.10; 0.25; 0.40; 0.60

Stage:

-Double layer

-Size: 300x268mm

-Travel: 250x200mm

Kohler illumination: 6V/20W halogen lamp, brightness is adjustable; built-in green, blue, yellow, and frosted glasses

Pupil distance: 48~75mm

Diopter adjustment: ±5 diopter (two eyepieces)

Power supply: 220V, 50/60Hz

Dimension: 647x268x376mm

Weight: 12kg

Standard delivery:

-Main unit: 1pc

-Camera connector: 1pc

-Anti- dust cover: 1pc

Optional accessory:

-Bright field objective:

• 2.5X plan achromatic objective (focus distance: 11.7mm)

• 5X plan achromatic objective (focus distance: 15.5mm)

• 50X plan achromatic objective (focus distance: 0.32mm)

• 100X plan achromatic objective (focus distance: 2mm)

-Polarizer and analyzer

-Digital camera

-Camera adpater 0.5X
