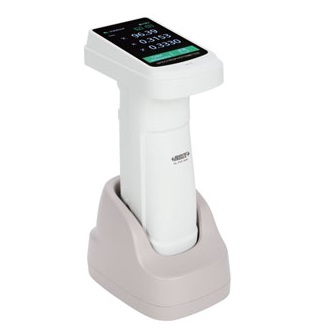

INSIZE 5701-D40 Spectrophotometer

Optical geometry:D/8 (diffused illumination/8 ° direction reception) SCI+SCE (specular component included+specular component excluded)

Integrating sphere size:∅40mm

Light source: LED (Full band balanced LED) +UV

Spectrophotometric mode: Grating

Sensor: Dual optical path high precise CMOS array sensor

Wavelength range: 400-700nm

Wavelength interval: 10nm

Reflectance measurement range: 0-200%

Reflectance resolution: 0.01%

Displaye resolution: 0.01

Illumination area/Aperture: MAV: ∅11mm; SAV: ∅6mm; MINI: 1x3mm

Color space: CIE-Lab, CIE-LCh, HunterLab, CIE Luv, XYZ, Yxy, RGB

Color difference formula: ∆E*ab, ∆E*cmc, ∆E*94, ∆E*00

Other colorimetric index:Whiteness (ASTM E313-00, ASTM E313-73, CIE/ISO, AATCC, Hunter, Taube Berger Stensby), Yellowness (ASTM D1925, ASTM 313-00, ASTM E313-73), Blackness (My, dm), Color fastness, Tint (ASTM E313-73) Color density CMYK (A, T, E, M), Milm, Munsell, Opacity, Color strength

Observer angle:2°/10°

luminant:A, B, C, D50, D55, D65, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12, CWF, U30, U35, DLF, NBF, T183, T184,Id50, Id65, LED-B1, LED-B2, LED-B3, LED-B4, LED-B5, LED-BH1, LED-RGB1, LED-V1, LED-V2

Measuring time:about 1.5s

Repeatability

Colorimetric values:within 0.08% of standard deviation

Spectral reflectance:∆E abso. 025 (after whiteboard correction, measuring the whiteboard 30 times at 5s interval)

Inter-instrument error:∆E abs0.25 (BCRA Series II, average value of 12 color plates)

Data port:USB, Bluetooth

Light source lifetime:10 years, more than 1 million times measurements

Battery:3.7V/3000mAh, rechargeable 8,000 times continuous tests

Demension: 95x129x231mm

Weight: 750g

STANDARD DELIVERY

Main unit:1pc

White calibration cavity: 1pc

Measuring aperture: 3pcs

USB cable: 1pc

USB disk: 1pc

AC/DC adapter: 1pc
