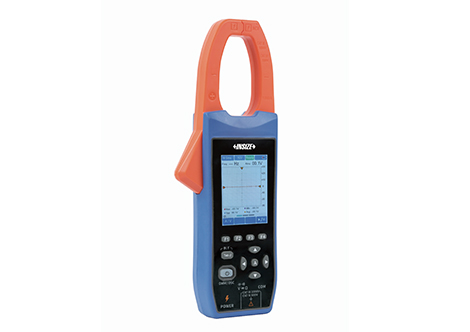

INSIZE 9311-CA110 Bluetooth Oscilloscope Clamp Meter (1000A, 1000V AC/DC, True RMS)

Analogue bandwidth: voltage: 200kHz; current: 1kHz

Acquisition mode: real-time

Sampling rate: 5MSa/s

Input impedance: ≥10MΩ

Voltage - maximum input voltage: 1000Vpk

Voltage - time base scale (s/div): 2.5μs/div~10s/div

Voltage - vertical scale (V/div): 30mV/div~500V/div

Current - maximum input current: 1000Apk

Current - time base scale (s/div): 2.5μs/div~10s/div

Current - vertical scale (A/div): 10A/div~500A/div

Time-base accuracy: ±(0.01%+0.1div)

DC gain accuracy: ±(5%+0.2div)

Position range: ±3div

Measurement parameter: RMS, frequency, maximum, minimum, peak-peak, average

Trigger mode: auto

DC current

Range: 20A / 200A/1000A

Resolution: 0.01A / 0.1A/1A

Accuracy: ±(2%+10d) / ±(2%+5d)

AC current

Range: 20A / 200A/1000A

Resolution: 0.01A / 0.1A/1A

Accuracy: ±(3%+10d) / ±(2.5%+5d)

Inrush current

Range: 20A/200A/1000A

Resolution: 0.01A/0.1A/1A

Accuracy: ±(10%+10d)

DC voltage

Range: 20mV / 200mV / 2V/20V/200V / 1000V

Resolution: 0.001mV / 0.01mV / 0.0001V/0.001V/0.01V / 0.1V

Accuracy: ±(0.1%+20d) / ±(0.1%+6d) / ±(0.1%+5d) / ±(0.15%+5d)

AC voltage

Range: 200mV/2V/20V/200V / 1000V

Resolution: 0.01mV/0.0001V/0.001V/0.01V / 0.1V

Accuracy: ±(0.6%+10d) / ±(0.8%+10d)

Resistance

Range: 200Ω / 2kΩ/20kΩ/200kΩ/2MΩ / 20MΩ / 100MΩ

Resolution: 0.01Ω / 0.0001kΩ/0.001kΩ/0.01kΩ/0.0001MΩ / 0.001MΩ / 0.01MΩ

Accuracy: ±(0.8%+10d) / ±(0.3%+10d) / ±(0.5%+5d) / ±(5%+10d)

Capacitance

Range: 2nF / 20nF/200nF/2μF/20μF/200μF/2000μF/20mF

Resolution: 0.001nF / 0.01nF/0.1nF/0.001μF/0.01μF/0.1μF/1μF/0.01mF

Accuracy: ±(5%+10d) / ±(3%+10d)

Frequency: 10Hz~20MHz, Resolution: 0.01Hz~0.001MHz, Accuracy: ±(0.1%+5d))

Duty cycle: 0.1%~99.9% (Resolution: 0.1%, Accuracy: ±(2.5%+10d))

Diode test: 0V~3V

Continuity check: <50Ω

Power supply: 18650 rechargeable lithium battery

Dimension (L×W×H): 248×94.5×37.8mm

Net weight: 400g
