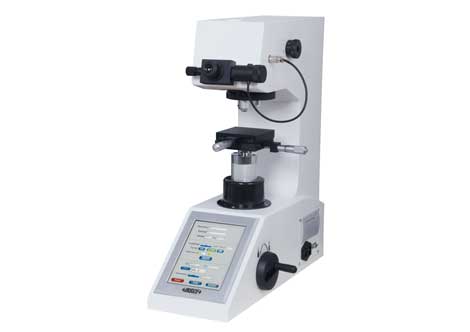

INSIZE HDT-MV290 Digital Micro-Vickers Hardness Testers

Type: manual switch of test force

Test force: 0.098N (10gf), 0.245N (25gf), 0.49N (50gf), 0.98N (100gf), 1.96N (200gf), 2.94N (300gf), 4.9N (500gf), 9.8N (1kgf)

Vickers scales: HV0.01, HV0.025, HV0.05, HV0.1, HV0.2, HV0.3, HV0.5, HV1

Range: 8HV~2900HV

Length measurement resolution: 0.01µm

Objective/indenter switch: motor driven turret

Stage lifting: manual

Load control: automatic (load/dwell/unload)

Load dwell time: 1~99 second

Objective: 10X, 40X

Eyepiece: 10X

Total magnification: 100X (for measurement or observation), 400X (for measurement)

Max. workpiece height: 100mm

Max. testing width: 130mm (from the center of indenter to the wall of main body)

X-Y stage:dimensions: 100×100mm, travel range: 25×25mm

Data output: built-in printer, RS232

Power supply:220V, 50/60Hz

Dimension: 540×260×650mm

Weight: 50kg

Standard Delivery

Main unit: 1 pc

10X, 40X objective: 1 pc of each

Micro vickers indenter: 1 pc

Hardness test block 400~500HV0.2: 1 pc

Hardness test block 700~750HV1: 1 pc

Level: 1 pc

Touch pen: 1 pc

Slice holder: 1 pc

Vice: 1 pc

Cylinder holder: 1 pc

Anti-dust cover: 1 pc
