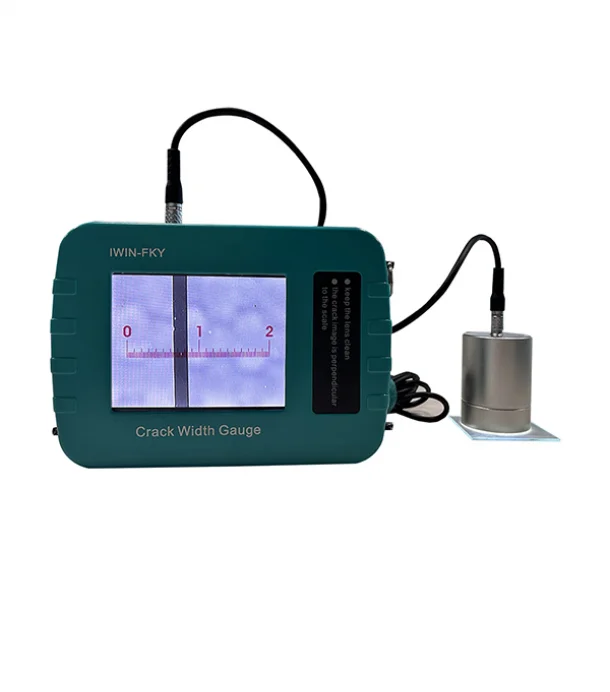

IWINTESTING FKY Concrete Crack Width Gauge (0.02 ~ 2.00mm)

Host parameters

Waterproof level: IP65

Screen size: 5 inches

LCD resolution: 640 × 480

Volume: 195 × 140 × 45mm

Weight: 0.8kg

Measuring range: 0.02 ~ 2.00mm

Reading Accuracy: 0.02mm

Magnification: 40 times

Minimum indexing: 0.02mm

Power supply mode: Built-in lithium battery

Connection length: 2.5m

Host weight: 0.8kg

Work environment: Temperature: -10 ° C ~ 40 ° C; Humidity: <90% RH

Packing specification

Material: engineering plastic

Volume: 420 × 140 × 335mm

Weight: 5kg

Features

1.New upgrade, adopting three-proof shell design, waterproof, dustproof and shockproof;

2.Using imported sensor chip, the test accuracy is high;

3.The main screen has a tick mark for direct reading;

4.The probe is equipped with night vision function, which can also be tested in dark environment;

5.Built-in rechargeable polymer lithium battery, greatly extending the working time and service life.
