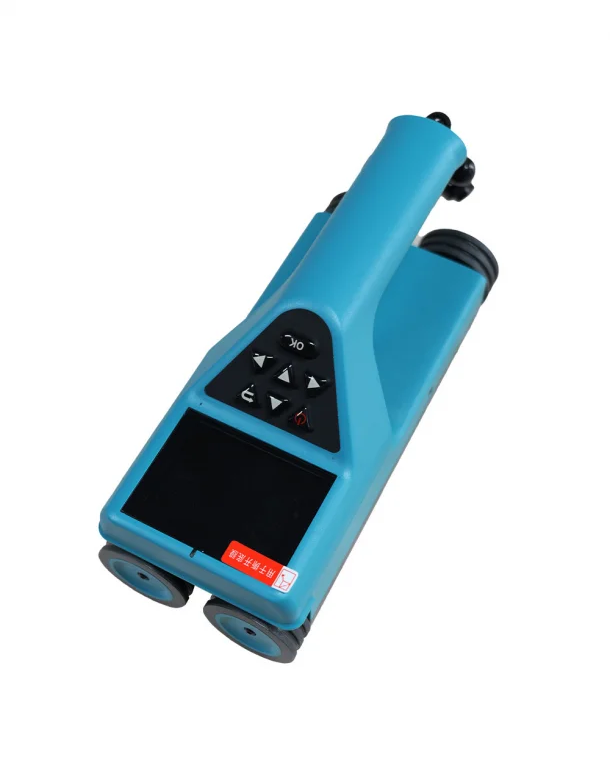

IWINTESTING GTJ-R800 Integrated Rebar Scanner (-10°C đến +40°)

Rebar diameter setting range: 6mm ~ 50mm

Small range: 1mm ~ 90mm

Large range: 1mm ~ 210mm

Maximum Allowable Error of Protective Layer Thickness:

±1 mm: 1mm ~ 59mm

±2 mm: 60mm ~ 69mm

±4 mm: 70mm ~ 119mm

±6 mm: 120mm ~ 210mm

Applicable scope of diameter estimation: 6mm ~ 32mm

Maximum error of diameter indication: ±1 specification grade

Profile measurement function: Supported

Mesh measurement function: Supported

Waveform measurement function: Supported

Probe self-calibration: Supported

Host parameters

Screen: 2.8 inch (Resolution: 240 x 320)

Dimensions: 220 x 93 x 110 mm

Weight: 0.6 kg

Data transmission mode: TF card / Wireless cloud transmission (optional)

Power supply: Lithium battery

Storage capacity: 2,000 Components × 1,000 Measuring Points

Working environment requirements: Temperature: -10°C to +40°; Humidity: < 90% RH

Other requirements: No corrosive gas in the air;

No strong electromagnetic interference; No severe vibration and shock;

Avoid direct sunlight.

Features

Style design, compact size, light weight, easy to carry, new upgrade wireless cloud transmission function, laser precise positioning of steel bar position;

Thickness detection mode is intuitive, showing thickness and steel spacing at the same time.

Thickness detection mode can automatically store thickness and spacing, which greatly improves the detection efficiency.

Waveform scanning mode shows the distribution of reinforcing bars intuitively, and it is more intuitive to detect and analyze dense reinforcing bars.

The waveform scanning mode also shows the thickness and spacing of the rebar protective layer.

It can detect the middle position of the two reinforcing bars, the aiming frame and the indication light, so as to facilitate drilling and coring.

The instrument automatically stores the calibration value, realizes fast measurement and avoids the trouble of each calibration.

Boundary-free mesh/profile scanning, the length of waveform scanning can reach 6m at a time.

TF card storage, large capacity, intuitive and convenient transmission;

2.8 inch high resolution color liquid crystal screen;

PC professional data analysis software, data processing and report generation can be easily completed.
