IWINTESTING IWIN-FSY Crack Depth Gauge (≤500 mm)

Host Parameters: Waterproof level: IP65; Screen size: 5 inches; LCD resolution: 640 × 480; Dimensions: 195 × 140 × 45 mm; Weight: 0.8 kg

Crack Depth Test Range: ≤500 mm

Test Error: ≤5 mm or 2%–10% of the actual depth

Measurement Method: Standard measurement; Fast measurement (quick test stand)

Data Transmission Interface: USB

Data Storage Capacity: 20,000 sets

Data Transmission Method: Wireless cloud transmission (optional)

Power Supply: Large-capacity lithium battery

Work Environment: Temperature: −10 °C ~ 40 °C; Humidity: <90% RH

Packing Specification: Material: Engineering plastic; Dimensions: 420 × 140 × 335 mm; Weight: 5.5 kg

Features

New upgraded wireless cloud transmission function;

It adopts three anti-shell design, waterproof, dustproof and shockproof;

On-site testing is simple and fast, no need to manually interpret the acoustic parameters, directly display the crack depth;

The instrument is easy to operate, fast to master, no need for professional knowledge;

High accuracy, the maximum error is not more than 5 mm or 2%-10% of the actual seam depth.

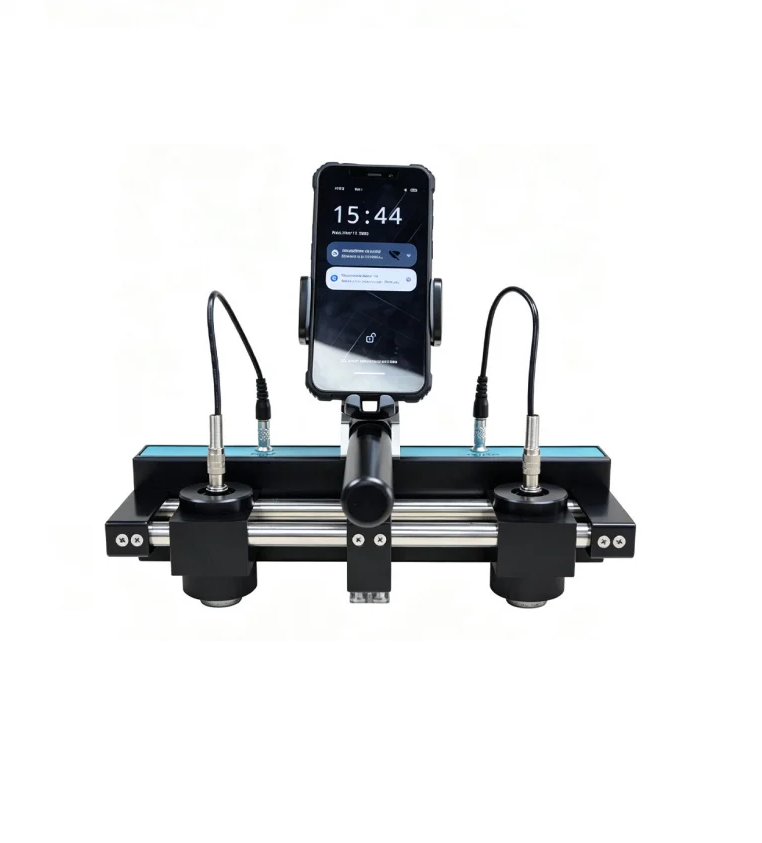

Use bracket test without scribing, accurate spacing, adjustable, greatly improving test efficiency.
