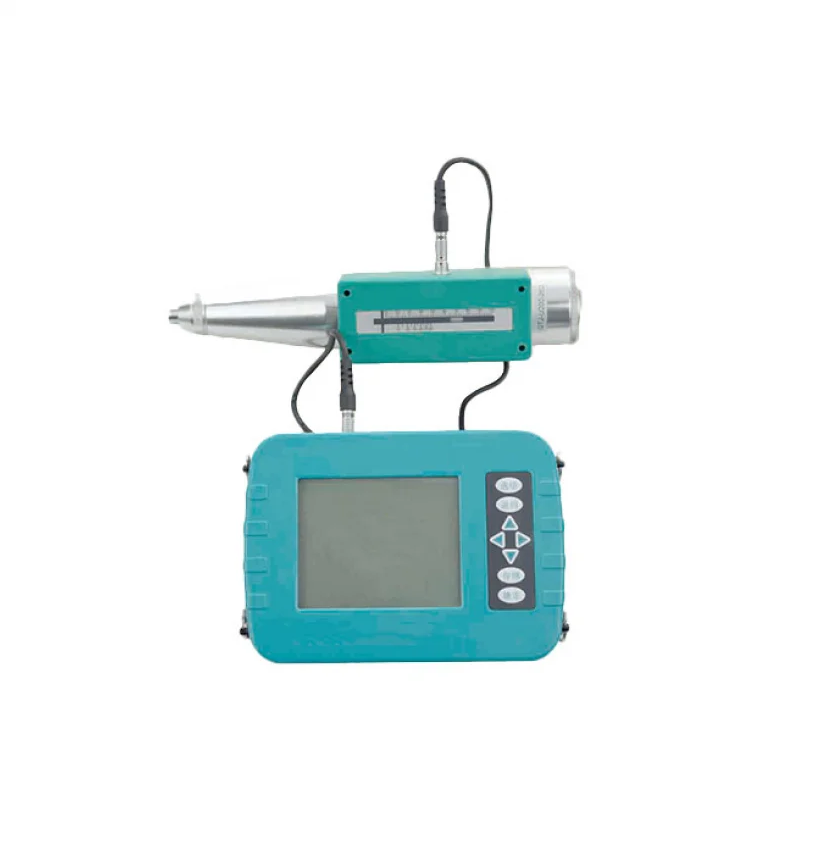

IWINTESTING IWIN-HTY Automatic digital rebound hammer (−10 °C ~ 40 °C)

Host Parameters

Waterproof level: IP65;

Screen size: 5 inches;

Resolution: 160 × 128;

Dimensions: 195 × 140 × 45 mm;

Weight: 0.8 kg;

Linear value of rebound value sensor: ±0.5; MOS image sensor; Storage: 240 components;

Large-capacity lithium battery, working time: more than 10 hours

Mechanical Rebound

Nominal kinetic energy: 2207 J;

Stretch tension spring stiffness: 785 N/m;

Hammer stroke: 75 mm;

Steel anvil rebound value setting: 80 ± 2;

Weight: 1 kg

Print Function: Supports micro-printer (optional)

Working Environment: Temperature: −10 °C ~ 40 °C; Humidity: <90% RH

Packing Specification

Material: Engineering plastic;

Dimensions: 420 × 140 × 335 mm;

Weight: 6 kg

Features

New upgrade, adopting three-proof shell design, waterproof, dustproof and shockproof;

Using a new MOS image sensor to subvert the traditional signal acquisition method, the data is accurate and reliable;

The rebound value is displayed in the form of numbers and scales, and the indication values are consistent;

Simple and convenient operation, according to the component management data, the strength is estimated, and the carbonization value can be recorded on site;

One main machine can be equipped with multiple mechanical rebound hammers to ensure continuous testing;

The software is powerful, can be built into a variety of measurement standards, and export a variety of test reports;

Optional printer, can directly print test data on site.
