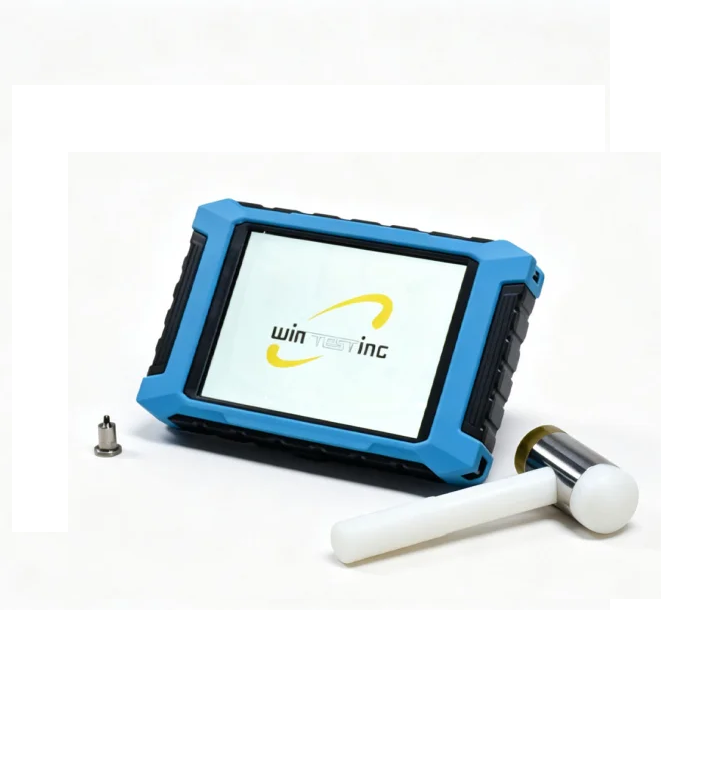

IWINTESTING IWIN-P800 Low Strain Pile Integrity Tester (10Hz~10kHz)

Standard number: ASTM D5882

System Noise Voltage: < 2 mV

Dynamic range: >138dB

Amplifier Band: 10Hz~10kHz

A/D Resolution: 16 bit A/D

Sampling time interval: 2us~32,768us

Sampling Length: 1024, 2048, 4096

Time indication error: <1%

Channel Number: 1

Amplification factor: 1~128

Data transmission mode: Wireless Cloud Transport (Options)

Trigger mode: Signal triggering

Sensor Sensitivity: 100 mV/g

Sensor frequency band: 1-10,000Hz

Continuous working hours: > 10 hours

Power Supply: Built-in rechargeable lithium battery (+7.4V)

Display: 640*480 Capacitance Screen

Operational mode: Touch

Weight: 1.24Kg

Size: 220x160x50

PRODUCT DETAILS

Pile integrity tester is a test and analysis instrument for pile integrity testing and monitoring of precast pile driving process.Under impact or vibration load, the pile structure integrity and vertical bearing capacity of single pile are tested and analyzed.The purpose is to determine the bearing capacity of pile and the integrity of pile structure.

The purpose and significance of foundation pile detection Detect the quality of the pile body, find out the defects and positions of the pile body, make necessary remedies for the pile body that affects the bearing capacity and life of the foundation pile, and at the same time achieve the purpose of checking the quality of the pile body.
