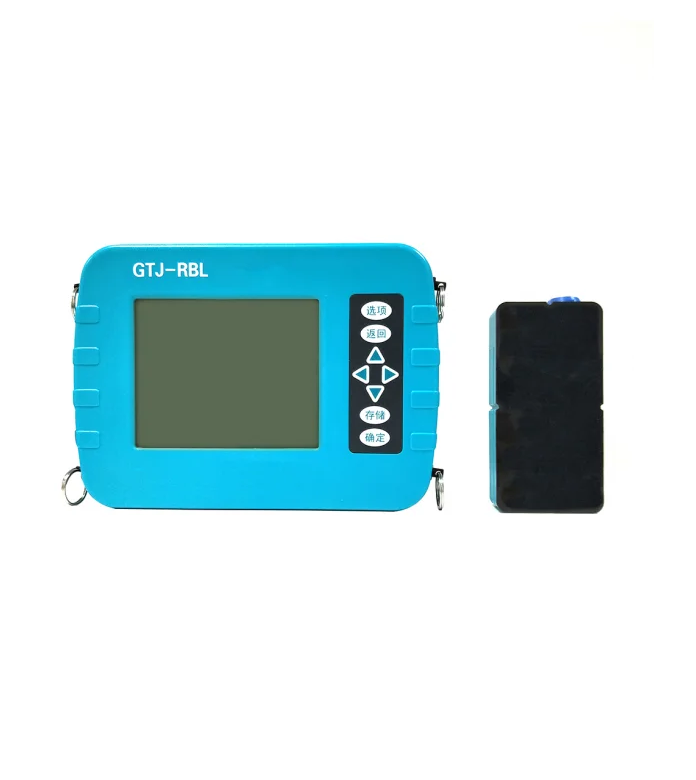

IWINTESTING IWIN-RBL Rebar Locator (Ф6mm ~ Ф50mm)

Applicable range of protective layer thickness: Ф6mm ~ Ф50mm

First Range: 6mm ~ 90mm

Second Range: 6mm ~ 200mm

Maximum Allowable Error (Second Range)

±1 mm: 6 ~ 79mm

±2 mm: 80 ~ 119mm

±4 mm: 120 ~ 139mm

±6 mm: 140 ~ 200mm

Applicable scope of diameter estimation: Ф6mm ~ Ф32mm

Maximum error of diameter indication: ±1 specification grade

Section grid display: Not supported

Storage quantity: 2,000 Components × 1,000 Measuring Points

Data transmission mode: USB / Wireless Cloud Transport (Optional)

Power supply mode: Rechargeable Lithium battery

Host parameters

Waterproof rating: IP65

Screen size: 5 inches (Resolution: 320×240)

Dimensions: 195×140×45 mm

Weight: 0.8 kg

Battery life: Large capacity lithium battery (> 12 hours continuous operation)

Working environment requirements: Temperature: -10°C to +40°C;Humidity: < 90% RH

Other requirements:

No corrosive gas in the air;

No strong electromagnetic interference;

No major shocks or vibrations;

Avoid direct sunlight

PRODUCT DETAILS

Upgraded wireless cloud transmission function;

Adopt three anti-shell design, waterproof, dust-proof and shock-proof;

Large screen high resolution LCD screen, the interface has Chinese prompts, more intuitive display content;

Built-in large capacity memory card, storage capacity upgrade;

USB transmission simulates the host computer as a U disk and reads data as easily as a U disk.

Real-time display of protective layer thickness and steel signal image, minimum automatic locking;

Dual-range operation mode can effectively ensure the detection accuracy and maximum detection depth;

Automatic storage of test data, on-site statistical analysis results are provided immediately, which is convenient for guiding construction work;

Professional data analysis software, so that your post-processing data and report generation work can be easily completed.
