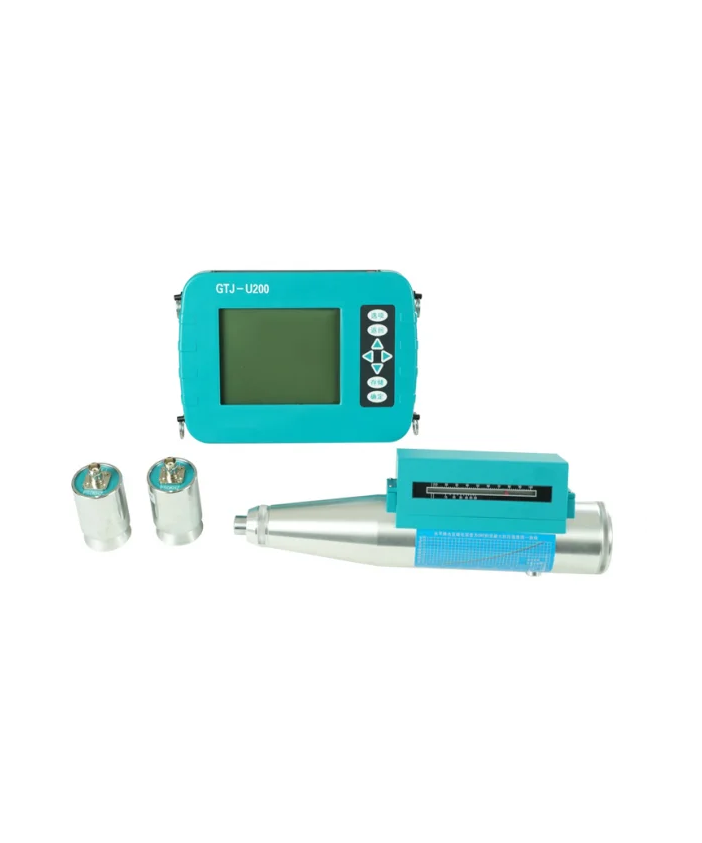

IWINTESTING IWIN-U200 Concrete Ultrasonic Rebound Hammer (5 Hz ~ 500 kHz)

Host Parameters: Waterproof level: IP65; Screen size: 5 inches; Dimensions: 195 × 140 × 45 mm; Weight: 0.85 kg

Ultrasonic Indication Error: ±0.1 μs

Ultrasonic Transducer Operating Frequency: 50 kHz

Instrument Ultrasonic Frequency Range: 5 Hz ~ 500 kHz

Data Transmission Mode: Wireless cloud transmission (optional)

Rebound Apparatus Nominal Kinetic Energy: 2207 J

Stiffness of Spring Strike: 785.0 ± 40.0 N/m

Impact Length of Ram: 75.0 ± 0.3 mm

Rebound Value Indication Error: ≤ ±0.5

Rebound Value Average on Steel Anvil: 80 ± 2

Power Supply Mode: Large-capacity lithium battery; operating time: more than 8 hours

Working Environment: −10 °C ~ 40 °C

Packing Specification: Material: Engineering plastic; Dimensions: 420 × 140 × 335 mm; Weight: 5.5 kg

PRODUCT DETAILS

New upgraded wireless cloud transmission function;

It adopts three anti-shell design, waterproof, dustproof and shockproof;

Multi-function: The compressive strength of concrete can be tested by two methods: rebound method and ultrasonic rebound method. It can measure the rebound value, and can measure sound time and sound speed, which is simple and convenient.

High quality: using imported sensors and advanced ARM processor, the test is fast and accurate, and the test results can be analyzed on site;

Easy to use: full Chinese interface, with prompts, quick learning to conduct on-site testing;

Powerful: The instrument can store 4000 sets of data, and record the test date at the same time, which is convenient for users to view and manage. The USB interface can quickly import data to the host computer for analysis and processing.
