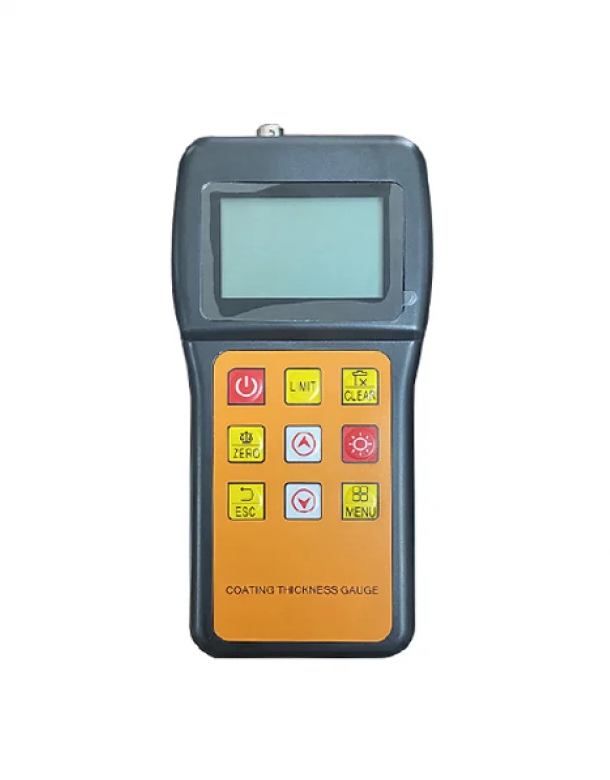

IWINTESTING T100 Coating Thicking Gauge (0 ~ 40℃)

Probe selection:

Optional 10 probes

F1(Paint/Plating/Fire-resistant layer and 10mm inner cover)

Other probes: F400,F1/90°,F5,N400,N1,N1/90°,CN02,N10

Working principle: Magnetic induction and eddy current

Measurement accuracy:

F1(±((1~2)%H+1))

F10(±((1~3)%H+1))

N1(±((1~2)%H+1))

Measuring range:

F1(0~1,250um)

F10(0~10,000um)

N1(0~1,250um)

Minimum curvature:

F1(3mm)

F10(10mm)

N1(4mm)

F400(1mm)

Minimum area: F1(Φ7),F10(Φ40),N1(Φ5),F400(Φ3)

Measurement method: Continuous measurement method, single measurement method

Statistics function: Mean, Large, Small, Tests,Standard Deviation

Calibration method: Single-point calibration,two-point calibration,and five-point basic calibration method to correct the system error of the probe

Storage function: Can store 495 measured values,with delete function:delete single suspicious data appearing in the measurement, or delete all data in the storage area for new measurement

Alarm system: Limits can be set: automatic alarming for measured values outside the limits; with power undervoltage indication function; beepprompts during operation; with error prompt function, error prompts can be displayed on screen or by beeps

Shutdown method: Manual shutdown mode and automatic shutdown mode

Use environment: 0~40℃/ humidity: 20%RH~90%RH; Magnetic field-free environment

Power supply: Tow AA batteries

The standard configuration: Main unit 1 set/probe 1 set/ standard piece(5 pieces)/iron or aluminum base 1 piece/ 5 AA battery 2 sections/manual certificate

warranty card 1 set

The instrument is a type of portable measuring gauge, capable of measuring rapidly, nondestructively, and precisely the thickness of coating and cladding material. It is suitable for on site as well as for laboratory uses. Via the using of different probes, many sorts of measuring can be satisfied by the gauge. It can be applied comprehensively to manufacturing, metal processing and chemical profession as well as to commercial inspection. It is indispensable for the major of materials protection.
