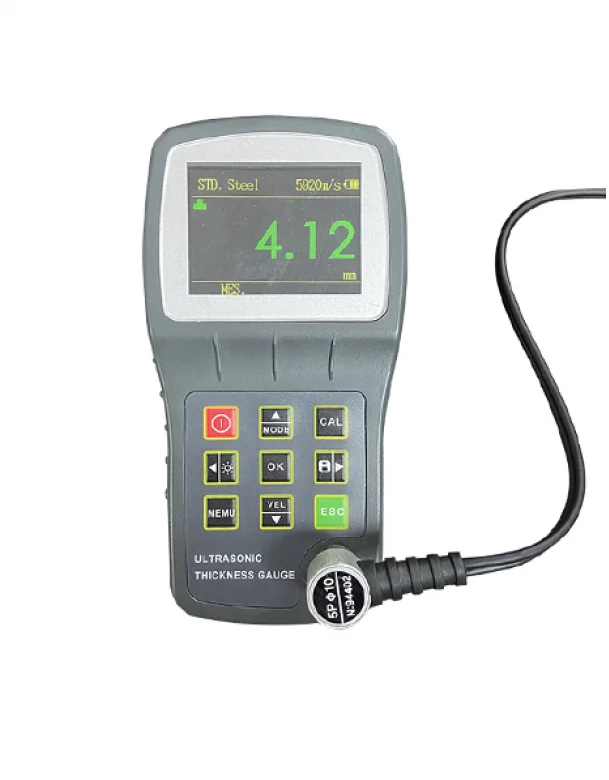

IWINTESTING U100 Ultrasonic Thickness Gauge (0.75-300mm)

Working principle: Ultrasound (pulse-echo)

Scope of test: 0.75-300mm

Resolution: 0.1mm(＞100mm) / 0.1mm(＜100mm)

Indication accuracy: ±(0.5%H+0.01)mm

Unit: mm/inch

Language: Chinese-English

Scan mode: 25 times/second

Frequency bandwidth: 0.5-15MHz

Speed of sound: 1,000~9,999m/s

Optional probe: High temperature / thin wall coarse grain / small diameter

Screen: 2.4 inch HD color screen (High contrast 320x240 true color LCD)

Sound path correction: Automatic

Probe connection status indication: Have

Storage: TF card machine storage, can be exported to save

Communication: USB interface communicates with host computer

Dimensions: 145x75x27mm

Standard configuration: 1 host / 1 probe / 2 batteries / 1 coupling agent / 1 set of document / 1 box

The ultrasonic thickness gauge adopts the principle of ultrasonic measurement, and is suitable for measuring the thickness of various kinds of ultrasonic benign conductor materials. This instrument can measure the thickness of all kinds of materials and monitor the thinning degree of various pipes and pressure vessels in the production process. It can be widely used in petroleum, chemical, metallurgy, shipbuilding, aviation, aerospace and other fields.
