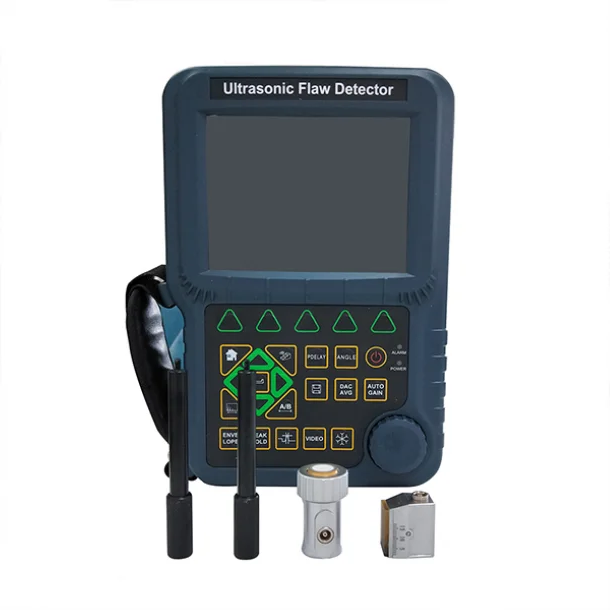

IWINTESTING U600 Ultrasonic Flaw Detector (0 ~ 9,999 mm)

Examination range: 0 ~ 9,999 mm

Working frequency: 0.2 ~ 20 MHz

Sound speed range: 1,000 ~ 15,000 m/s

Dynamic range: ≥ 36 dB

Vertical linearity error: ≤ 2.5%

Horizontal linearity error: ≤ 0.1%

Discrimination: > 40 dB (5P14 probe)

Sensitivity margin: > 65 dB (200 mm depth, Φ2 mm flat-bottom hole)

Digital suppression: 0 ~ 80% (does not affect linearity or gain)

Electrical noise level: ≤ 8%

Probe type: Straight probe, oblique probe, dual-crystal probe, penetration probe

Gate: Incoming gate, loss gate; single-gate reading, double-gate reading

Pulse amplitude: Low (300V), Medium (500V), High (700V) selectable options

Pulse width: Continuous adjustment in range (0.1 ~ 0.5) μs to match different probe frequencies

Probe damping: 100Ω, 200Ω, 400Ω optional

Real-time hardware sampling: High-resolution 10-bit AD converter, 160 MHz sampling rate, high waveform fidelity

Detection method: Positive half-wave, negative half-wave, full-wave, radio frequency (RF)

Filter band: 0.2 ~ 20 MHz, fully automatic matching based on probe frequency

Data storage: 100 flaw detection parameter channels, 1,000 flaw detection echo signals & parameters

Communication interface: USB 2.0 high-speed communication transmission interface

Power supply: DC 9V; Lithium battery supports continuous operation > 8 hours

Dimensions: 263 × 170 × 61 mm

Ambient temperature & humidity: Temperature: -10°C to 50°C | Humidity: 20% to 95% RH

It adopts all-Chinese true color liquid crystal display. Different color schemes can be selected according to the environment. The brightness of liquid crystal can be adjusted under strong outdoor light. Master-slave menu design, with digital shuttle wheel, easy to operate, leading technology. It is widely used in aerospace, railway transportation, building steel structure, boiler pressure vessel and other fields. It is a necessary professional precision instrument for defect detection, quality control, in-service safety monitoring and life evaluation in railway, shipbuilding, metallurgy, chemical industry, petroleum and other industries.
