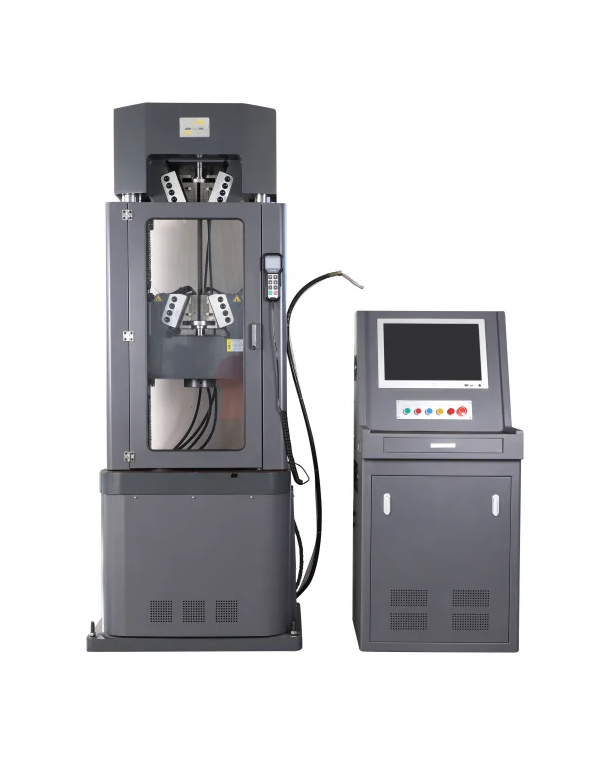

IWINTESTING WAW1000B Micro Electromechanical Servo Universal Testing Machine (1,000kN)

Maximum test force (KN): 1,000

Test machine accuracy level: Level 1

Test force collection method: Spoke load sensor

Piston stroke (mm): 200

Clamping method: Hydraulic

Test control method: Microcomputer servo control

Compression test space (mm): 600

Tensile test space (mm): 700

Machine power (kW): 1.5

Compression platen (mm): φ225

Round sample clamping range (mm): φ14~40

Flat specimen clamping range (mm): 0~40

Number of columns (screws): 6 columns

Mainframe dimensions (mm): 940x640x2,250

Host weight (kg): 2,800

Control cabinet size (mm): 1,010x640x840

Control cabinet weight (kg): 150

Features

The oil source control part adopts Siemens motor and high precision digital valve;

The space adjustment mechanism adopts the Kawashima reducer with low noise;

Using semi-closed hydraulic jaws, high strength;

Vertical control cabinet, touch industrial computer, convenient and practical, saving space;

The test adopts the microcomputer automatic control mode, which has the functions of stress rate, strain rate and stress retention and strain retention;

Host four-column double screw test space structure;

High-speed Ethernet communication interface communicates with PC;

Standard database management test data;

High-strength, high-toughness and beautiful protective net for safety protection.
