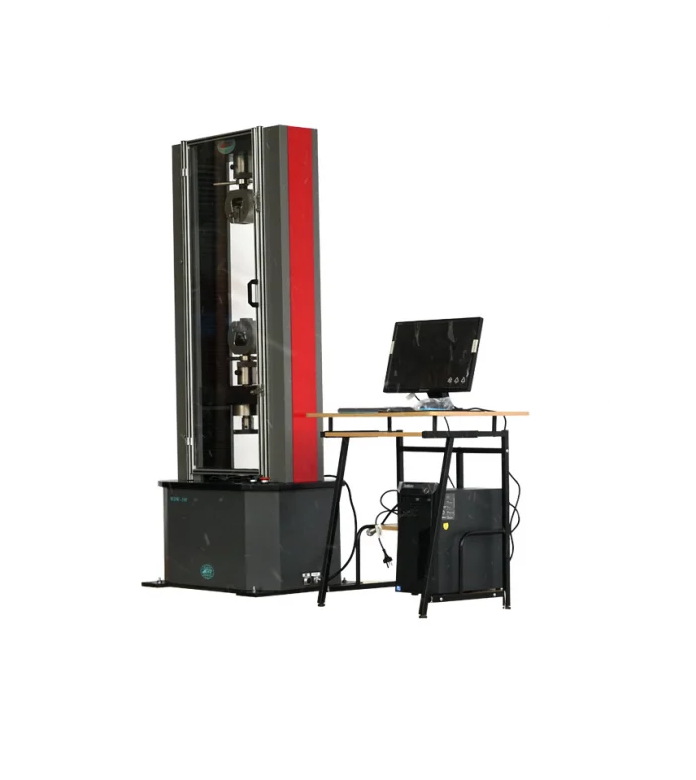

IWINTESTING WDW100 Microcomputer Control Electronic Universal Testing Machine (100 kN)

Maximum test force: 100 kN

Effective range: 0.4% ～ 100%

Test force relative error: ≤ ±0.5%

Beam moving speed range: 0.01 ～ 500 mm/min

Beam speed relative error: ≤ ±1%

Maximum stroke of the beam: 1,000 mm

Stretching stroke: 700 mm

Effective test width: 400 mm

Host size (L × W × H): 730 × 550 × 1,870 mm

Power supply: 220V / 1.5 kW

Weight: About 440 kg

Loading frame

1. The main frame includes the table top, the middle beam, the moving beam, the column and the ball screw. All the parts are steel parts. The structure is compact and the connection is firm, which ensures the rigidity of the testing machine and the smooth running of the moving beam.

2. The test machine is divided into upper and lower test spaces, the upper space is subjected to tensile test, and the lower space is subjected to compression and bending tests, which reduces the trouble of different test replacement test aids, and ensures the accuracy of the test machine and is easy to operate.

3. The test space is sufficient to meet the requirements of various tests to the utmost extent.

4. The frame protection cover ensures the cleaning of the ball screw. The beam limit device can arbitrarily set the limit position of the moving beam up and down to ensure the safe operation of the test machine.

Beam drive

1. The AC servo drive system controls the AC servo motor, and the ball screw is rotated by the precision planetary reduction system to move the beam up and down.

2. Using the gapless arc timing belt to link the two lead screws, high efficiency, low noise, ball screw drive loading, force value

3. Full digital closed loop control.

Test machine controller

1. Set load, displacement, deformation measurement and display, speed control, test parameter setting, test machine calibration, data processing, report output and other functions in one.

2. The test force and deformation amount are enlarged in four steps.

3. Fully automatic data processing. The main items include: elastic modulus, upper and lower yield points, maximum points, non-proportional stress points at break points, and partial curve amplification.

4. Data processing and curve drawing and output.

5. Display mode: screen display

6. Operation mode: Operate through the 101 keyboard and mouse menu.

Other characteristics

1. Use 220V mains.

2. Safety protection device can prevent problems such as over-travel, overload, leakage and current overload.

3. Appearance plexiglass shield.

4. A variety of special accessories are available as an option.
