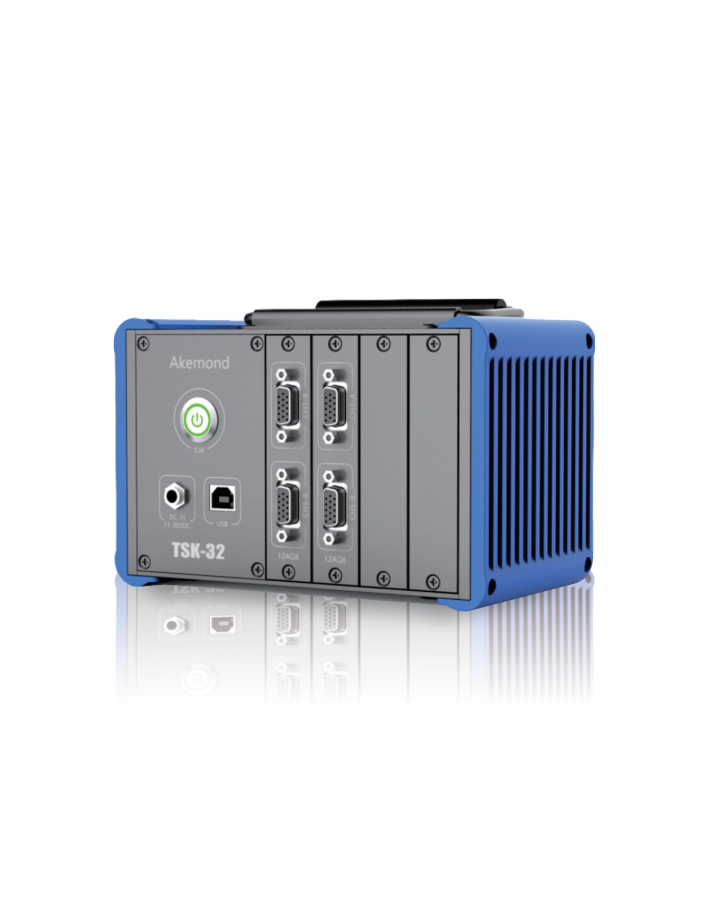

Akemond TSK-32-32C-12 ストレステスター
生産者: Akemond Model: TSK-32-32C-12 - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Maximum Input Channels (CH): 32
Number of Channels: 32
Supported Strain Gauge Resistance (Ohm):120
Number of Channels per Module: 8 strain signal input channels
Maximum Number of Modules: 8 modules
Sampling Frequency: Up to 10 kHz per channel
A/D Converter Resolution: 24-bit
Filter: Delta-Sigma (with analog pre-filtering)
Input Connector: D-Sub 25-pin or terminal block
Synchronous Operation: Up to 8 groups, 64 channels
Sampling Mode: Synchronous acquisition, all channels synchronized
Wheatstone Bridge Types: 1/4 bridge (two-wire and three-wire)
Accuracy Error: 0.3%
Supported Strain Gauge Resistance: 120 ohms or 350 ohms
Range: ±55,500 µe
Non-linearity: ±0.1% FS or less
Scaling Factor: 3.5062 nV/V/LSB
Stability: Gain drift 6 ppm/°C
Overvoltage Protection (between any two terminals): ±30V
Chassis Interface: USB 2.0
Power Supply: 11-30 VDC, 220 VAC
Operating Environment: -40°C to 70°C, 10%-90% RH, non-condensing
Storage Environment: -40°C to 85°C, 5%-90% RH, non-condensing
Protection Level: IP40
Weight: Approximately 2.5 kg
