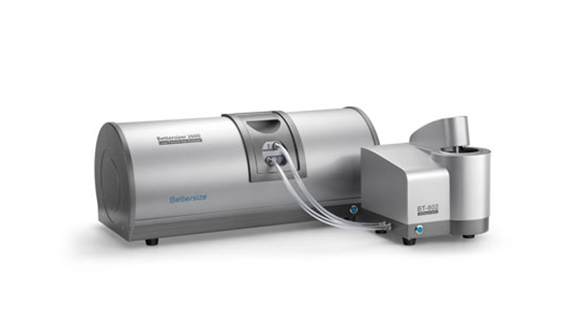

Bettersize Bettersizer 2600 Particle size analyzer (0.02 - 2600 μm (wet); 0.1 - 2600 μm (dry))

Parameter Measured

Particle size distribution: Suspension, emulsion, dry powders

General

Principle: Laser diffraction technologies

Analysis: Mie scattering theory and Fraunhofer diffraction theory

Typical measurement time: Less than 10 seconds

Measurement Performance

Measuring range: 0.02 - 2600 μm (wet)

0.1 - 2600 μm (dry)

Accuracy: <0.5%

Repeatability: <0.5%

Number of size classes: 100 (adjustable)

Feeding mode: Automatic circulation or micro cuvette (wet)/ Gas transportation (dry)

Special functions: SOP settings, refractive index measurement, sample ratio calculation

Main Device

Optical system: Combined Fourier and inverse Fourier & Tilted sample cell

Laser: High-power optical fiber laser (10 mW / 635 nm)

Detector: 92 detectors (forward, lateral and backward arrangements)

Measuring angle: 0.016 - 165°

Wet dispersion module

Measurement method: One-click operation (automated measurement, cleaning, saving, printing, etc.)

Dispersion medium: Water or organic solvents (sample dependent)

Circulation speed: 300 - 2500 r/min

Ultrasonication: Dry burning prevention，50 W

Dry dispersion module

Dispersion medium: Air/ Nitrogen/Noble gas

Air pressure: 0.1 - 0.8 MPa (Air compressor dependent)

Software

Conformity: 21 CFR Part 11, ISO 13320, ISO 13322, USP <429>

Report: Customizable reporting

System Parameters

Dimensions (L x W x H): 70.5 x 31.8 x 29.5 cm

Weight: 23 kg

Supply voltage: 100 - 240V, 50/60 Hz

Computer Configuration (Recommended)

omputer interface: At least one high-speed USB 2.0 or USB 3.0 port required

Operating system: Windows 7 (32 bit and 64 bit) or higher

Hardware specification: Intel Core i5 Processor, 4GB RAM, 250GB HD, Wide screen monitor
