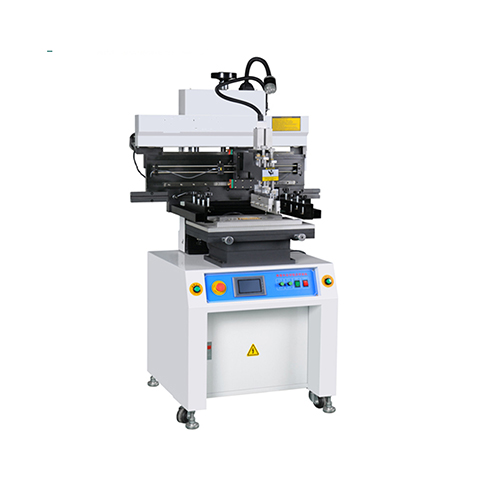

Censtar OB-618E 半自動はんだペーストプリンター (0-8000mm/Min)
生産者: Censtar Model: OB-618E - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Dimension: 1650*670*1550mm
Platform size: 320*1300mm
PCB size: 300*1250mm
Stencil size: 550*1480mm
Printing speed: 0-8000mm/Min
PCB thickness: 0-100mm
Power supply: 1P AC220V, 50/60HZ
Platfrom height: 880mm
Repeatability: (+/-0.01mm)
Table fine-tuning: Front/back±10mm; Right/Left±10mm
Printing accuracy: ±0.05mm
Machine repeatability: ±0.02mm
Use air pressure: 4-7kg/cm2
Positioning mode: Outside/Reference hole
Weight: 380kg
This equipment is used for the solder paste and red glue printing of PCB boards in the SMD production line hindrance.
Features
1.High precise slide rail printing precise is uo to 0.2mmlC
2.PLC+touchscreen+frequency inverter controller
3. Magnetic thimble + honeycomb board platform, more suitable for double sides PCB
4.Scrape angle, pressure, trave length are adjustable
5.X/YIZ axis can fine turning, high precise
