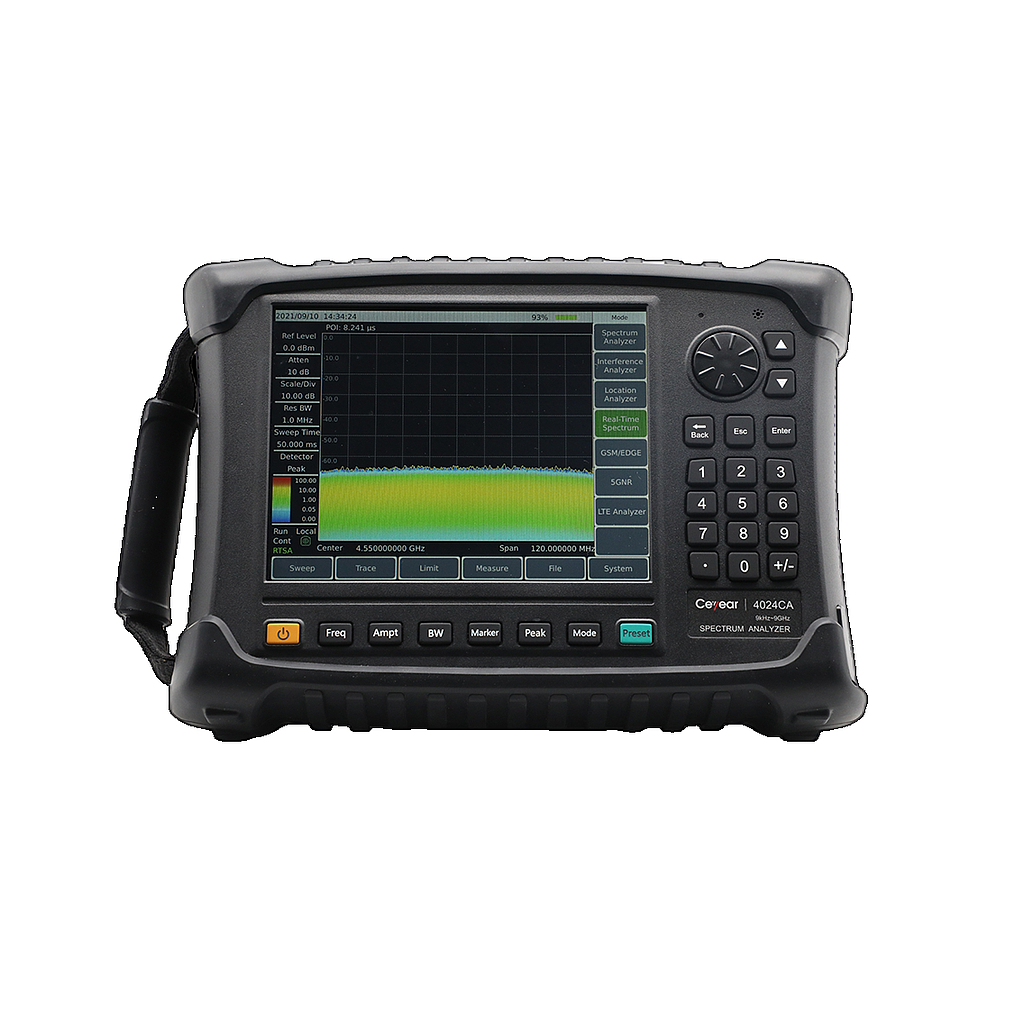

Ceyear 4024CA スペクトラムアナライザー (9kHz～9GHz)

Frequency Range

• 4024CA:9kHz～9GHz

• Frequency Resolution:1Hz

Frequency Reference

• Frequency: 10MHz

• Aging Rate: ±0.5ppm/Year

• Initial Frequency Accuracy: ±0.3ppm

• Temperature Stability:±0.1ppm(-10～50℃,   Comparative to 25℃)

Sweep Time

• Range: 10μs～6000s   (Zero Span)

• Accuracy: ±2.00% (Zero Span)

Frequency Readout Accuracy: ±(Frequency Readout× frequency   Reference +2%× Span +10%× Resolution Bandwidth)

Frequency Span

• Range: 100Hz～9GHz   or   0Hz

• Accuracy: ±2.0%

Resolution Bandwidth: 1Hz～10MHz   (1-3 Times of Stepping), 20MHz

Video Bandwidth: 1Hz～10MHz   (1-3 Times of Stepping), 20MHz

SSB Phase Noise (Carrier 1GHz)

• ≤-108dBc/Hz@ Frequency Offset 10kHz

• ≤-110dBc/Hz@ Frequency Offset 100kHz

• ≤-118dBc/Hz@ Frequency Offset 1MHz

• ≤-129dBc/Hz@ Frequency Offset 10MHz

Displayed   Average Noise Level (input   port is connected with a 50Ω   load, 0dB input attenuation, average detection, logarithm of video type, RBW   normalized to 1Hz, tracking source off, 20℃~30℃)

• Pre-amplifier Off:

≤-140dBm(2MHz～3GHz)

≤-138dBm(3GHz～9GHz)

• Pre-amplifier On:

≤-160dBm(2MHz～3GHz)

≤-157dBm(3GHz～9GHz)

Residual Response (exceptional   frequency: 3.15GHz):

• Pre-amplifier   Off:

≤-82dBm（10MHz～9GHz）

• Pre-amplifier   On:

≤-95dBm（10MHz～9GHz）

Second Harmonic Distortion  (0dB attenuation, -30dBm input signal)

• 50MHz~2GHz: <-65dBc

• 2GHz~4.5GHz: <-70dBc

TOI(-15dBm two-tone signal, 100kHz   span, pre-amplifier off)

• 50MHz~5.2GHz  ≥+10dBm

• 5.2GHz~9GHz   ≥+12dBm

Absolute Amplitude Accuracy (input signal 0dBm~-50dBm, all   settings are automatic couplings, 20℃~30℃,   30 minutes of preheating) : ±1.3dB (10MHz～9GHz)

Input Attenuator: Attenuation Range: 0dB～30dB,   5dB Steps

Maximum Continuous Input

+27dBm Peak Typical(≥10dB Attenuation)

+20dBm Peak Typical(<10dB   Attenuation)

+10dBm Peak Typical(Pre-amp On)

Reference Level

• Range: -150dBm～+30dBm

• Conversion Uncertainty: ±1.20dB

Dimension

• 314mm (W)×218mm (H)×91mm (D)   (Excluding Handle, Stand)

• 338mm(W)×218mm (H)×100mm (D) (Including Handle, Stand)

Weight: ≤4.6kg

Working Temperature: -10℃～+50℃   (the battery operation temperature is 0℃～+45℃)

Storage Temperature: -40℃～+70℃   (the battery storage temperature is -20℃～+60℃)

Electromagnetic Compatibility: Conforms to GJB3947A-2009 3.9.1   Requirements

Power Supply

• AC power adapter: input 100 to 240VAC, 50/60Hz Output   15VDC, 4A

• Lithium-ion battery: 10.8V

Battery operation time: 2h (typical)

Power Consumption: ≤40W

Test Interface: RF input: Type-N Connector（female）

Other Interfaces

• 10MHz Reference Input/Output: BNC (female)   Connector

• External Triggering Input: BNC (female)   Connector

• IF Output: BNC (female) Connector

• GPS Antenna Input: BNC (female)   Connector

See more detail information in the Datasheet
