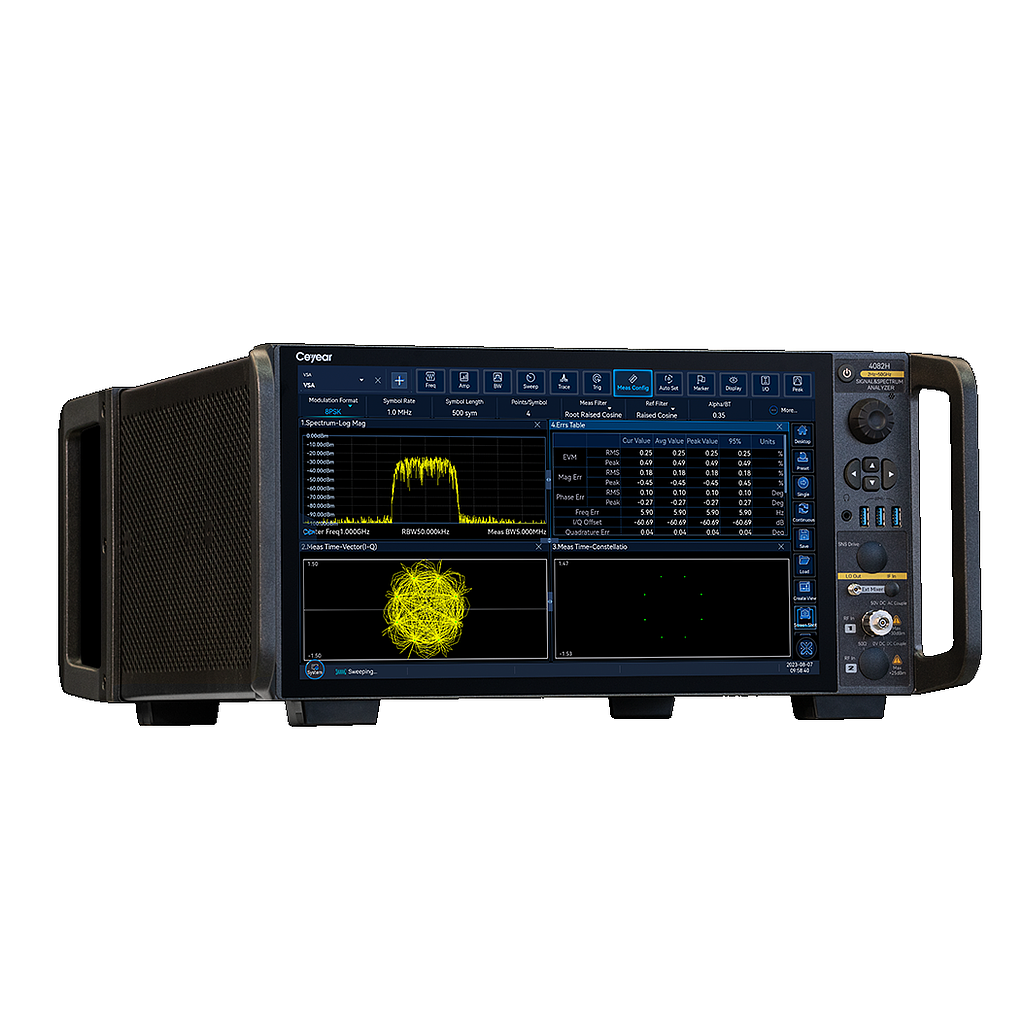

Ceyear 4082F 信号およびスペクトラムアナライザー (DC: 2 Hz ~45 GHz, AC: 10MHz ~ 45GHz)

Frequency Range:

DC: 2 Hz ~45 GHz

AC: 10MHz ~ 45GHz

10MHz Precise Frequency Reference

•  Frequency accuracy: ± (last calibration date × aging rate + temperature stability + calibration accuracy)

•  Aging rate: ± 5×10^-10/day

•  Temperature stability: ± 1.5×10^-8

Span

•  Range: 0Hz (zero span), 10Hz – the highest frequency of the model

•  Accuracy: ± (0.1%× frequency span＋ frequency span/ (sweep points number-1))

Sweep Time Range

•  Span≥10Hz: 3us – 16000s

•  Span=0Hz: 3us – 16000s

RBW

•  0.1Hz-20MHz (1, 2 ,3 ,5, steps)

•  Conversion uncertainty: ±0.10dB; 1Hz to 3MHz (1,2,3,5 steps)

•  Conversion uncertainty: ±0.30dB; 5MHz to 20MHz (1,2,3,5 steps)

VBW: 1Hz to 20MHz (1,2,3,5 steps)

Signal Analysis Bandwidth

•  Standard: 10MHz

•  Option H38-40: 40MHz

•  Option H38-200: 200MHz

•  Option H38-400: 400MHz

•  Option H38-600: 600MHz

•  Option H38-1200: 1.2GHz

•  Option H38-2000: 2GHz

SSB Phase Noise (Carrier 1GHz, 20℃ -30℃)

Feature

•  -107 dBc/Hz @ 100Hz offset

•  -125 dBc/Hz @ 1kHz offset

•  -134 dBc/Hz @ 10kHz offset

•  -136 dBc/Hz @ 100kHz offset

•  -142 dBc/Hz @ 1MHz offset

•  -152 dBc/Hz @ 10MHz offset

Typical

•  -115 dBc/Hz @ 100Hz offset

•  -128 dBc/Hz @ 1kHz offset

•  -135 dBc/Hz @ 10kHz offset

•  -137 dBc/Hz @ 100kHz offset

•  -140 dBc/Hz @ 1MHz offset

•  -154 dBc/Hz @ 10MHz offset

Trigger Source: Free, Line, video, external 1, external level 2, burst RF, timer

Trigger Detector: Normal, positive peak, negative peak, sample, video average, power average, voltage average

Residual Response: ≤-98dBm;  1MHz ≤ f ≤8GHz;  RF Port 1

Power Supply: AC 100 – 240V: 50 – 60Hz

Dimension: Excluding the handle, brackets: (426±4）mm × (222±4）mm × (450±4）mm

Weight: About 35kg (different configuration cause different weight)

See more detail information in the Datasheet
