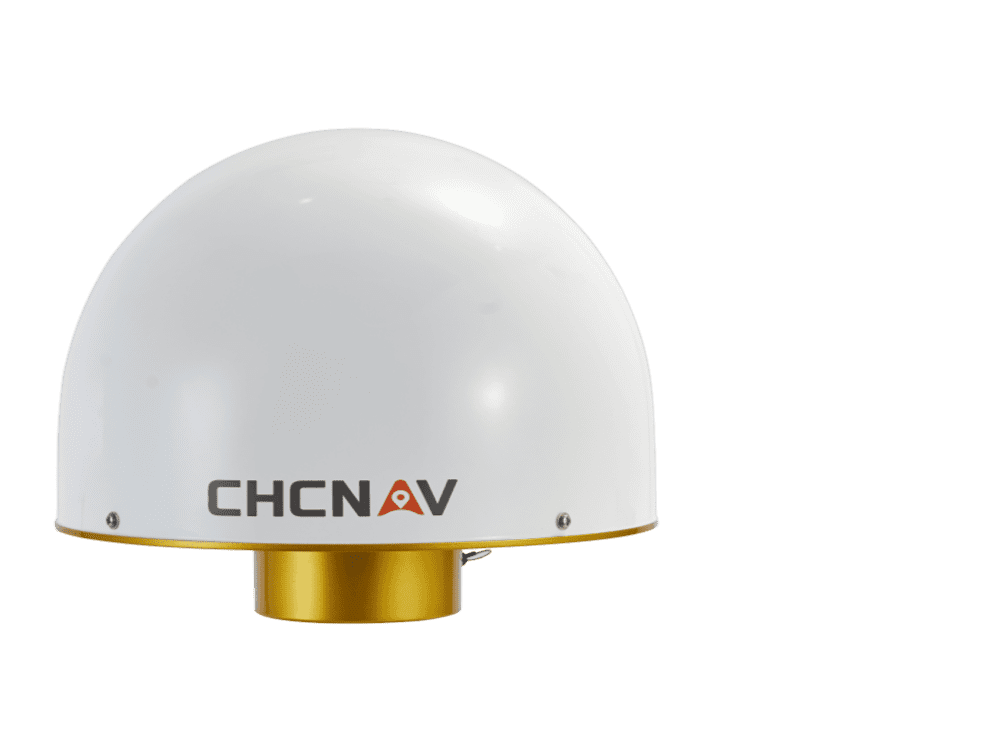

CHCNAV A220GR GNSS Infrastructure (40 dB, ± 2 mm)
生産者: CHCNAV Model: A220GR - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Antenna type: Geodetic
Frequency:
GPS L1 + L2
GLONASS L1 + L2
BDS
GALILEO
SBAS
LNA gain: 40 dB
LNA voltage: 3 V DC to 18 V DC
LNA current: ≤ 45 mA
Polarization: Right Hand Circular
Axial ratio: ≤ 3 dB
Phase center accuracy: ± 2 mm
Impedance: 50 Ohms
VSWR: ≤ 2.0
Noise: ≤ 2 dB
Dimension (D x H): 147 mm x 62 mm(5.8 in x 2.4 in)
Weight: 400 g (14.1 oz)
RF connector: TNC
Operating temperature: -40°C to +85°C
Threading: 5''/8''
Construction: None
Antenna calibration: None
Vibration: MIL-STD-810G standard
Ingress protection: IP67 waterproof and dustproof, protected from temporary immersion to depth of 1 m
