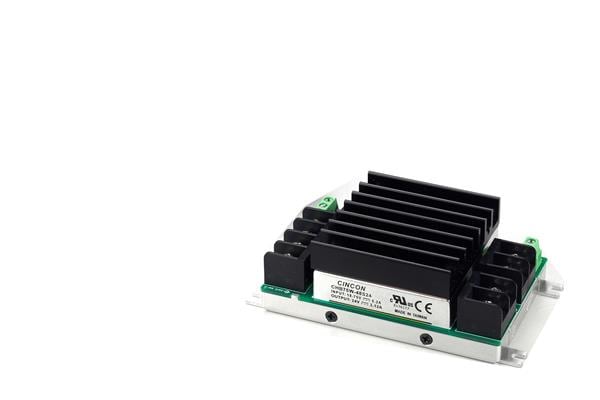

Cincon CHB75W-48S48N-DIN 絶縁型DC-DCコンバータ、ヒートシンク付きハーフブリック、DINマウント、75ワット、4:1入力範囲、シングル出力、48VDC入力、47uF/100V、48VDC出力、ネガティブログIC
生産者: Cincon Model: CHB75W-48S48N-DIN - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 57.9 mm
Height: 12.7 mm
Length: 61 mm
Efficiency: 84 %
Unit Weight: 94 g
Output Power: 75 W
Input Voltage: 18 V to 75 V
Cooling Method: Convection
Mounting Style: DIN Rail
Mechanical Style: Isolated
Isolation Voltage: 1.5 kV
Number of Outputs: 1 Output
Input Voltage - Max: 75 V
Input Voltage - Min: 18 V
Input Voltage, Nominal: 48 V
Output Current-Channel 1: 1.56 A
Output Voltage-Channel 1: 48 V
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 40 C
