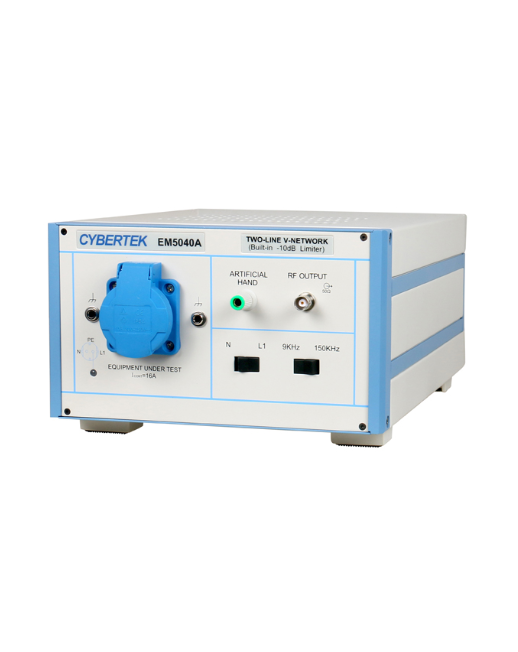

Cybertek EM5040A ラインインピーダンス安定化ネットワーク (9kHz—30MHz, 0～375V DC, 16A)
生産者: Cybertek Model: EM5040A - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Frequency range: 9kHz—30MHz
Circuit type: (50uH+5Ω）|| 50Ω Type V
Measurement circuit phase number: Single phase two wire L/N1
AC voltage/frequency range: 0～264VAC / 50～60Hz ±5%
DC voltage range: 0～375V DC
Power supply output connector: German standard power supply socket
Output current: Rating 16A
Ground protection: Side metal panel grounding; Rear panel 4mm butterfly bolt grounding
Output connector: Standard 50Ω BNC female
Artificial hand: Yes
Output signal filter: High-pass filter 9kHz/150kHz optional
Output signal limiter: Attenuation coeffcient-10dB; limit threshold 130dBuV
Output signal common mode and differential mode separator: No
Operating temperature range: 0℃～45℃
Storing temperature: -20℃～70℃
Safety standard: EN61010-1
Size: 338mm（Length) × 237mm (Width) × 133mm (Height）
Weight: 5.25kg
