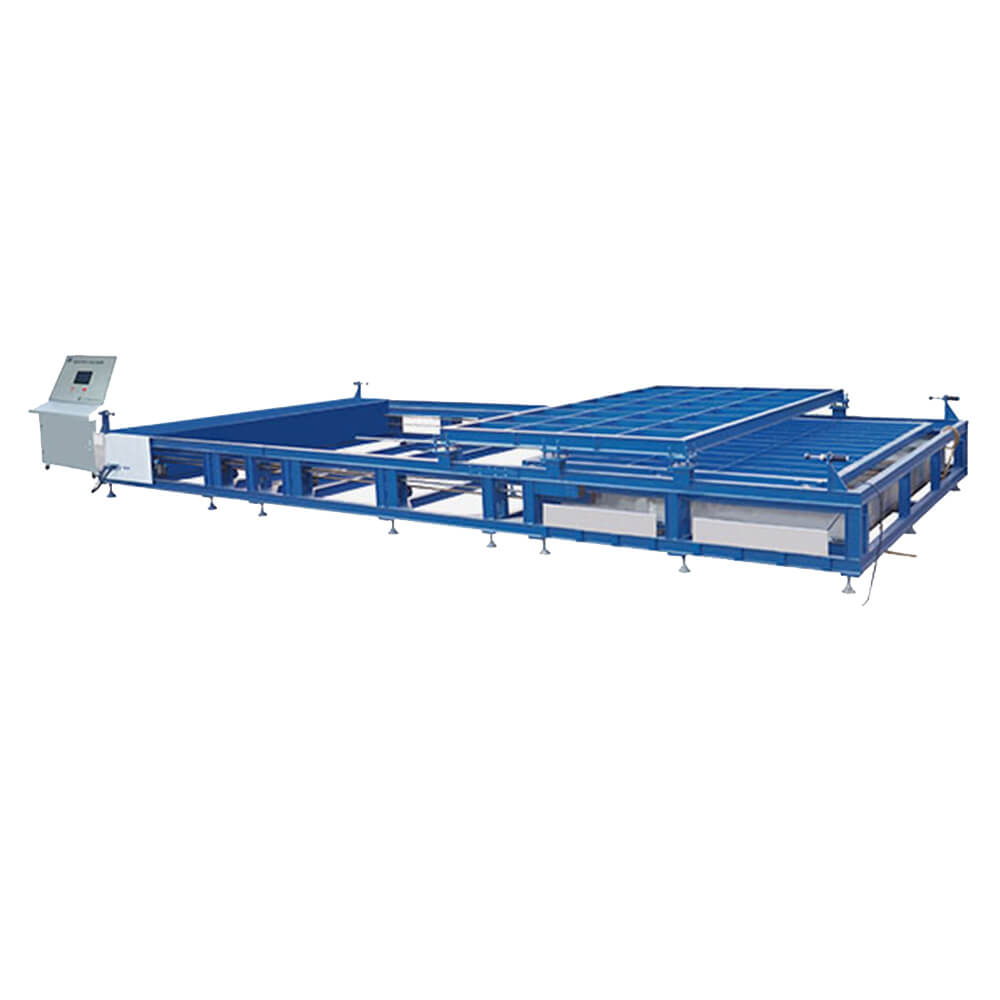

DGBell BE-8202-2500 外部火災暴露試験機 (AC 380V, 7.0KW)

Test Space: W1500 X D2500 X H800mm

Equipment Dimension: W7500 X D3700 X H960mm

Movable Rack: W1500 X D3000 mm

Max. Load: 1000KG (2000KG,3000KG can be customized)

Object Holder Moving Speed: 6000mm/min (Adjustable)

Refractory Rack Moving Speed: 6000mm/min (Adjustable)

Control System: PLC touch screen close control + computer remote control

Ignition Mode: Automatic high pressure pack ignition

Distance Between Burning Plate and gasoline: The distance between the gasoline and the test object can be adjusted within the range of 450cm~550mm. The defaulted 500mm; the bottom of the gasoline plate is filled with water.

Refractory Brick Size: In accordance with the standard of ECER100, Refractory Brick Size 240mm*120mm*70mm.

Gasoline Plate Size: 3 gasoline plates-can be changed easily according to the test object size. the height of gasoline plate is no more than 80cm from the gasoline level

Power Supply: AC 380V,7.0KW

Weight : pprox 3.5 Tons

Other requirements:

The ignition area of gasoline plate can be adjusted according to requirements.

Automatic gasoline filling.

Remote control.

Electrical ignition according to test requirements.

The video monitoring system, lighting system.
