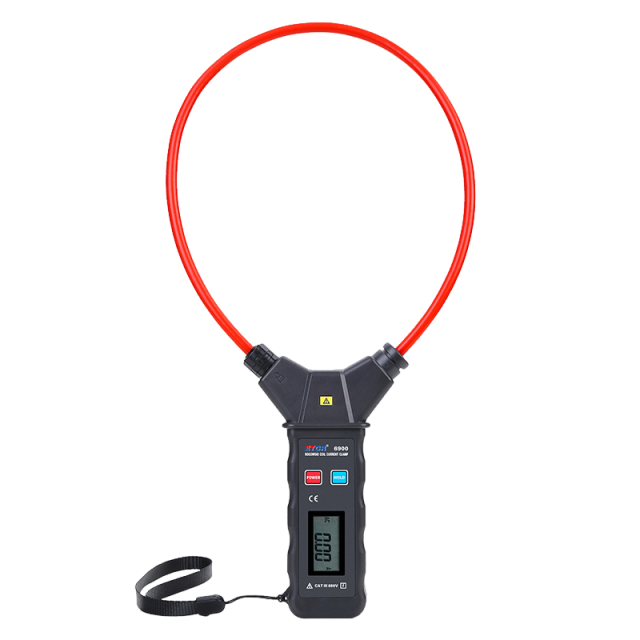

ETCR ETCR6900 フレキシブル大電流クランプメーター (Φ200mm, 9999AAC, Peak Hold)

Power Supply: Zn-Mn dry battery 6F22 9V

LCD Size: 35mm×21.5mm; display area: 32mm×15mm

Measurement Range: AC 0.00A~9999A

Solution: AC 10mA

Accuracy: ±2%rdg±3dgt(the wire is at the center of the flexible coil,23℃±2℃)

Coil Diameter: φ200mm

Coil Thickness: φ7.5mm

The Measured Current Frequency: 50Hz/60Hz(Automatic)

Backlight: with backlight, convenient to use in dark site

Meter Size: 190mm×370mm×40mm

Weight: Meter: about 200g(include battery);total weight: about 0.38kg(include accessory)

Electric Field Interference: No hysteresis effect, strong anti-interference ability

Position Error: The measured wire should be in the center of the flexible coil as far as possible, not close to the opening and closing mouth, the test error at the opening and closing mouth will increase by one times or more

Sampling Rate: 2 times /second

Memory: 99 groups,flicker to flash display "FULL" symbol indicate storage full

Peak Hold: Peak value capture and hold function, long press POWER key display peak value, and the peak value symbol display

Data Hold: Data hold function: "DH" symbol display

Line Voltage: Line measurement below AC600V

Overflow Display: Exceed measure range overflow function: “OL”symbol display

Battery Level: While battery voltage is lower than 7.2V. low battery voltage symbol display, remind to replace the battery

Rated Current: About 8mA

Insulation Resistance: 100MΩ or larger, 1000V

Suitable Safety Standard: IEC1010-1, IEC1010-2-032, Pollution level 2, CAT VI(1000V) IEC61326(EMC standard)

Working Temperature & Humidity: -10℃~40℃; below 80%RH

Storage Temperature & Humidity: -10℃~60℃; below 70%RH
