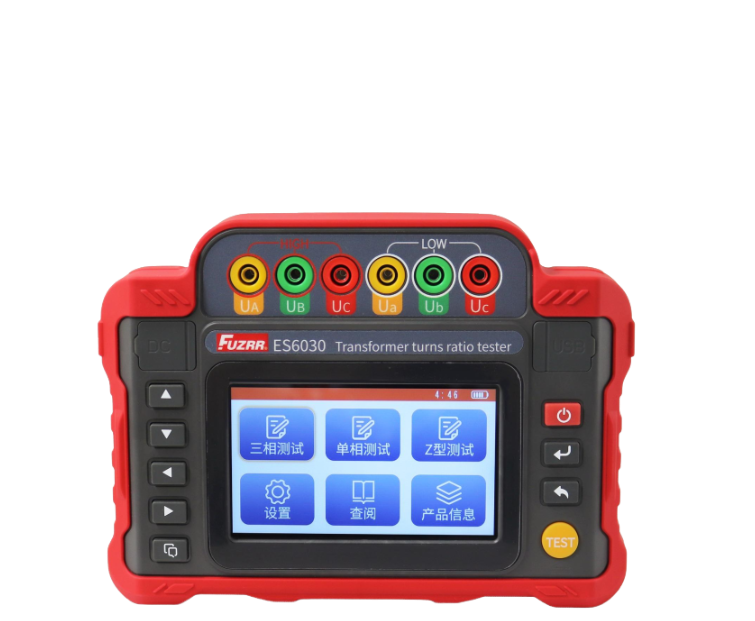

FUZRR ES6030 変換回転比テスター (0.9~10000)

Function: It is mainly used for ratio and group testing of the three phase transformers, and single-phase transformers, PT and CT. This product can be used for blind testing of three phase transformers, as well as ratio and group testing of Z-type transformers.

Specimen type: Single phase transformer,three phase transformers ,Z -type transformers,PT,CT

Radio range: 0.9~10000

Overload protection: Yes

Power source: DC9.6V 3800mAh high capacity lithium battery

Charging function: Yes

Display mode: 5 inch touch screen（854dots× 480dots） Full color LCD display

Mode of the interaction: Touch screen/buttons

LCD size Length and width: 108 mmx65mm

Instrument size: Length, width and height:229mmx166mmx74mm

Mobil APP: Yes ,Bluetooth connection

Computer host: Yes, USB line connection

Data storage: 500group

Data access: Data access function

Battery voltage: Real-time display of battery level, indicating the need for timely charging when the battery voltage is low

Automatic switch off: Auto power off could be set for 1~30 minutes.

Power consumption

Standby:approx.2w(100% brightness)

Measurement:12 Max

Quality

Instrument :1.5kg (including battery)

Test line： 1.7kg

Working temperature and humidity: -10℃～40℃； 70%rh below

Storage temperature and humidity: -20℃～60℃； 70%rh below

Insulation resistance: 10MΩ above(between circuit and housing)

Pressure resistance: AC 3700V/rms(between circuit and housing)

Electromagnetic property: IEC61010-4-3， radio frequency≤1V/m

Suitable for safety regulation: IEC61010-1、 CAT Ⅲ 600V、 pollution class2
