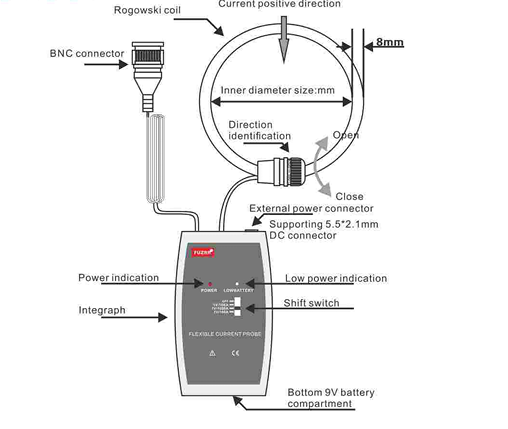

FUZRR FR200RE ロゴスキーコイルセンサー (DC:10V/100A; DC:10V/1000A ; DC:10V/10kA)

Coil Length: 630mm

Coil Inside Dia. φ200mm

Coil weight: about 250g

Output Signal:

DC:10V/100A

DC:10V/1000A

DC:10V/10kA

Coil Color: Blue

Battery 9V: N/A

External Power Supply: External power input : 24V

Power Consumption: 10mA

Function: AC leakage current, high current, high harmonic current, complex waveform current, transient impulse current phase, electric power, power, power factor, etc.

Coil Line Dia.: 8mm

Output: only coil output : 100mV/1000A

Power Supply Voltage :Corresponding Integrator power supply voltage

Low Current Indication: have

Accuracy Level: ±1.0% FS

Phase Error: 1°(50Hz/60Hz ; 23°C±2°C)

Response Frequency without integrator: 0.1Hz - 10MHz

Line Voltage: circuit test below AC 1000V
