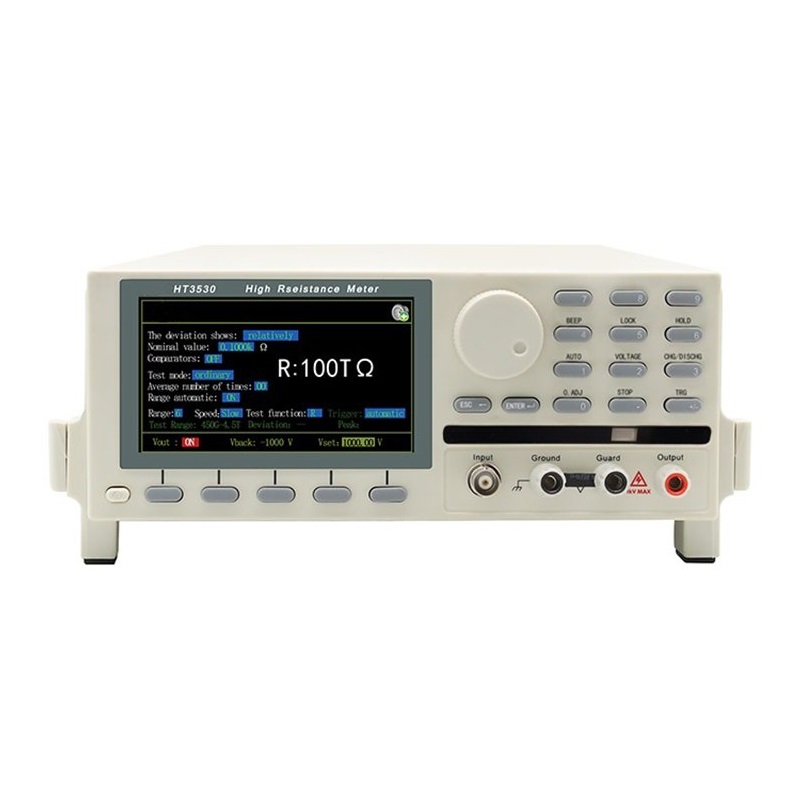

Hopetech HT3530A 高絶縁テスター (1~1500V, 1Ω~9.9 PΩ, 2mA~10fA)

Display: 4.3-inch large screen LCD display

Test Parameters: Insulation resistance (IR), leakage current (I), volume resistivity (Rv), area resistance (Rs)

Readback Voltage Accuracy: 0.5%±1V

Programmed: 1~1500 V, Step value: 1V

Measurement Range:

Resistance: 1Ω-9.9PΩ,

Leakage current: 2mA~10fA

Ranges: Six different measurement ranges;

auto and manual modes are available in each range

Basic Accuracy: 1%(10M~1G);3% (1G~10G)；5%(10G~100G);10%(100G~1T);20%(≥1T)

Test Speed: 1 meas/sec., 5meas/sec.

Calibration: Open-circuit reset for all ranges

Timing Charger: 0~999.9S

Comparator: 1 set data records, judging over the upper limit ( HI), qualified (IN), and less than the lower limit(LO)

Trigger mode: Internal trigger, manual trigger, external trigger, bus trigger

Interface: RS-232, Handler (PLC)

Result Display: Direct reading, ΔABS, Δ%, θ, sorting result

Max Reading DIgits: 99999 five-digit display

Power supply: 198VAC～240VAC, 47Hz-63Hz, max power 50VA

Size and Weight: 331mm*329mm*80mm (L*W*D), gross weiht:2.5kg

Accessories: HT9330 cable,PB36 connector, HT9800 cable, Power cord, USB

Options: HT0305 test electrode
