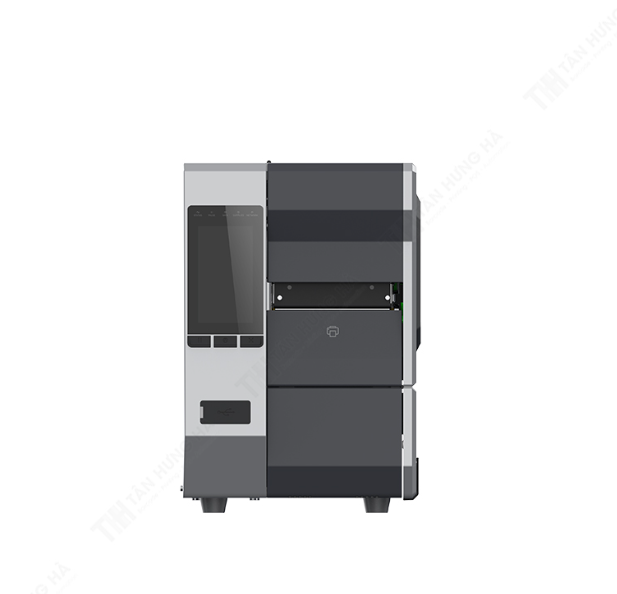

HPRT Grand 600dpi 産業用バーコードプリンター (600dpi, 152.4mm/s)

Printing

Printing Method: Thermal transfer / Direct thermal

Resolution: 600DPI

Printing Speed: 6 ips (152.4mm/s)

Printing Width: 106mm

Printing Length: 762mm

Processor: 32 bit RISC CPU

Memory: RAM 512MB; Flash 2GB

Detection: Sensors: Out-of-paper Sensor,Gap Sensor,Cover Opening Sensor,Black Mark Sensor,Thermal Head Temperature Sensor

Supplies

Types: Folding paper, roll paper, die-cutting or continuous label paper, black label paper

Width: 20mm-114mm

Thickness: 0.003 inch (80μm) - 0.010 inch (250μm)

Minimum Height: 3mm

Maximum Roll Diameter: 8 inch (203mm)

Core Diameter: 3 inch (76.2mm)

Ribbon

Types: Wax, Wax/ Resin, Resin

Width: 1.18 inch (30mm) - 4.33 inch (110mm)

Length: 1476 feet (450m)

Core Diameter: 1 inch (25.4mm)

Programming Language: DPL,EPL2,ZPL-II,TSPL

Software

Label Design: Seagull Bartender UltraLite 2021

Driver: Windows XP, 7, 8, 10. server 2008, 2012; CUPS for Linux and MAC OS and Windows Seagull Drivers

Built-in Fonts

Bitmap Fonts: 6, 8, 12, 16, 32, OCR A & B. 90°, 180°, 270° rotatable 10 times maximun expandable in horizontal and vertical directions

Vector Fonts: Equal-width CG Triumvirate™ vector fonts

Download Fonts

Bitmap Fonts: 90°, 180°, 270° rotatable, single word 90°, 180°, 270° rotatable

Vector Fonts: 90°, 180°, 270° rotatable

Asian Characters: Equal-width CG Triumvirate™ vector fonts

Code Pages:

DOS437,720,737,755,775,850,852,855,856,857,858,860,862,863,864,865,866,

Windows 1250,1251,1252,1253,1254,1255,1256,1257,1258

ISO8859-1,-2,-3,-4,-5,-6,-8,-9,-15

DBCS 932 (JIS), 936(GBK), 949 (Koran), 950(BIG5)

Barcode

1D: Code 39, Code 93, EAN 8/13 (add on 2 & 5), UPC A/E (add on 2 & 5), I 2 of 5 & I 2 of 5 with Shipping Bearer Bars, Codabar, Code 128 (subset A, B, C), EAN 128, RPS 128, UCC 128, UCC/EAN-128 K-Mart, Random Weight, Post NET, ITF 14, China Postal Code, HIBC, MSI, Plessey, Telepen, FIM, GS1 DataBar, German Post Code, Planet 11 & 13 digit, Japanese Postnet, I 2 of 5 with human readable check digit, Standard 2 of 5, Industrial 2 of 5 , Logmars, Code 11, Code 49, Cadablock

2D: PDF417, Data matrix code, Maxi Code, QR code, Micro PDF417, Micro QR code, Aztec code

Interfaces

Standard: USB,Serial port,Ethernet port,USB Host(Front),Bluetooth

Optional: Parallel port,WiFi,Support UHF RFID extension,GPIO port

Screen: 5-inch touch screen

Real Time Clock: Equipped

Man-machine Interface: Two-color status light: status light, pause light, data light, media light, network light, control key: 3 (pause, feed, cancel)

Power Adapter: Power Input:AC100-240V,50-60Hz ; Output:DC24V/13.5A

Environment: 41℉(5℃)-104℉(40℃)，30%-85%,non-condensing

Physical Characteristics

Dimension(L*W*H) 498*273*400mm

Weight 20.5KG

Options & Accessories:

Electric cutter module (cutter, hob),

Label peeler module

Built-in bottom paper rewinding device (can rewind the whole roll of printed labels, or rewind the bottom paper)

UHF RFID module

Agency Approvals: CCC,FCC,CE,CB,UL,RoHS,WEEE,ENERGY STAR
