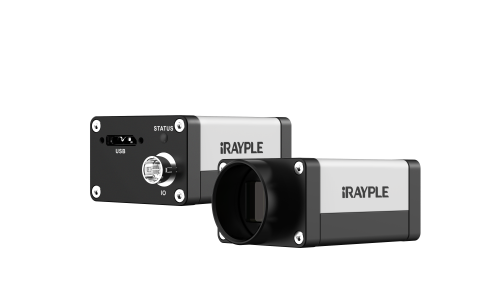

iRAYPLE A7A20MU201E 工業カメラ (IMX304; 4096 × 3000; Mono)
生産者: iRAYPLE Model: A7A20MU201E - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Basic
Sensor: IMX304
Image Sensor: 1.1" CMOS
Shutter: Global
Resolution: 4096 × 3000
Frame Rate: 30.5 fps
Bit Depth: 12
Mono/Color: Mono
Pixel Size: 3.45 μm × 3.45 μm
Pixel: 12MP
S/N Ratio: >38dB
WDR: >70dB
Image Format: Mono8/10/10Packed
Binning: Support
ROI: Support
X Flip: Support
Y Flip: Support
Gain: 1~32
Gamma: 0~4，Support LUT
Exposure Time: 29μS~1S
Trigger Mode: Software Trigger/Hardware Trigger/Free Run Mode
SPC: Support
Performance
User Setting: Support two sets of user-defined configurations
Image Buffer: 64MB image cache，64M data cache
Port
Port: USB3.0
GPIO Interface: 6 pin Hirose: 1x Opto-isolated input, 1x Opto-isolated output, 1 configurable input and output
Lens Mount: C
Power
Power Supply: Power supply via USB connector /DC power supply by Hirose connector, with voltage range from 9V to 24V
Power Consumption: ≈4.0W
Structure
Product Dimensions: 29mm*44mm*58mm(not including lens mount and rear case connector)
Net Weight: 91 g
Environment
Storage Temperature: - 30℃~+80℃
Operating Temperature: - 30℃~+50℃
