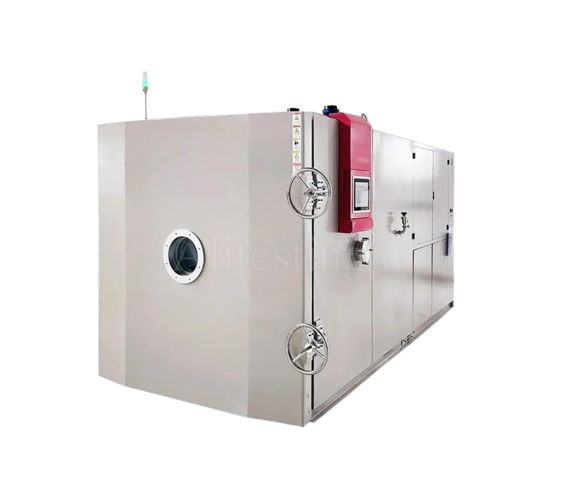

Joeo ACC-9000-A 低圧温度試験チャンバー (8900L; ~0.5Kpa; 0~150℃)

Size

Internal Dimension WxHxD (mm): 1730x1980x2600

External Dimension WxHxD (mm): 2130x2440x4673

Volume (L): 8900L

Pressure

Pressure range: Normal pressure~0.5Kpa ( 500pa）

Pressure error:

+ Ordinary pressure~40kpa≦±2kpa;

+    40kPa~4kPa≦±5kPa;

+    4kPA~1kPa≦±0.1kpa

Depressurization time:

+  From site level to 15250m in 10minutes

+  From site level to  22860m in 20minutes

+  From site level to 30500m in 30minutes

Rapid decompression time: 75.2kPa~18.8kPa≦15s (Optional)

Explosive decompression time: 75.2kPa~18.8kPa≦0.1s (Optional)

Temperature

Temperature range

+ Low temperature range: 0℃

+ High temperature range: 150℃(180℃ is Optional)

Temperature fluctuation: ±0.5℃

Temperature Rising/Falling Speed Rate:

+ Temperature rising approx:0.1~ 2.0℃/min;

+ Temperature falling approx:0.3-1.0℃/min

Temperature uniformity:  ±1.5℃(-40.0℃∽100.0℃);  ±2.0℃(100.1℃~180.0℃or-40.0℃∽-70.0℃)

Humidity

Humidity range: 20%RH~98%RH(work under atmos pheric humidity）;  10%R.H ~98%R.H (Optional)

Humidity fluctuation: ±2.0%RH

Humidity uniformity: ≦±3.0%RH(humidity >75%R.H); ≦±5.0%RH(humidity ≦75%R.H)

Power:  AC380V 3phase 5lines  50/60Hz

Aprroximate weight(kg):  7500
