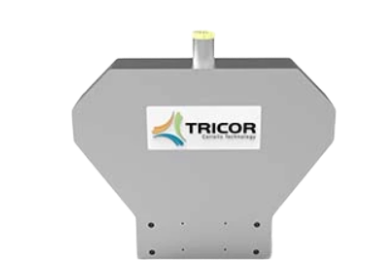

KEM TCMH 0450-HC-SPMS 高圧ガス用コリオリ質量流量計 (1,050 bar [15,200 psi, Sandvik Alloy HP160)
生産者: KEM Model: TCMH 0450-HC-SPMS - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Nominal Flow Rate
20°C air, pressure drop 10 bar:
394 kg/h @ 1,050 bar [14.5 lb/min @ 15,200 psi]
20°C H2, pressure drop 50 bar:
254 kg/h @ 1,050 bar [9.30 lb/min @ 15,200 psi]
Pressure Rating: TCMH 0450-HC-SPMS: 1,050 bar [15,200 psi] (M respectively HP160 = not NACE compliant)
Accuracy
Flow: ±0.5 % of flow rate
Mass Repeatability: ±0.1 % of flow rate
Zero Stability: 0.45 kg/h [0.0165 lb/min]]
Temperature: ±1 °C ±0.5 % of flow rate [±1.8 °F ±0.5 % of flow rate]
Operating conditions-process
Process Temperature Range: -40 °C ... +100 °C [-40 °F ... +212 °F]
Medium: Gas
Pressure Effect on Sensitivity: 0.0002 % / bar [0.000014 % / psi]
Operating conditions-environment
Ambient Temperature: -40 °C ... +70 °C [-40 °F ... +158 °F]
Relative Humidity: max. 95 %
Materials (Wetted Parts)
Tubes: Sandvik Alloy HP160
Case: 1.4404 [AISI 316L]
Flow Splitter: 1.4404 [AISI 316L]
Burst protection
Rupture Disc: G1/2”
Connectivity
Flow Meter: 3/8” Autoclave (MP) (others on request)
Signal Cable Connection: Push-Pull connector
For triple Ex approval (Ex3)
