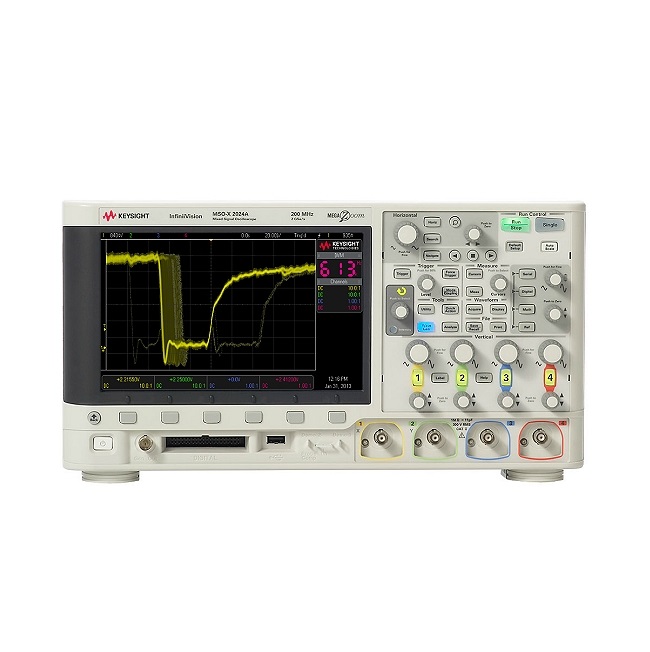

KEYSIGHT MSOX2004A InfiniiVision Oscilloscope (70 MHz, 4+8 CH, 2 GSa/s)
生産者: KEYSIGHT Model: MSOX2004A 品物を保証します: 12 Month - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Bandwidth: 70 MHz
Channels: Analog channels: 4 + Digital channels: 8
Maximum sample rate: 2 GSa/s half-channel interleaved, 1 GSa/s per channel
Maximum memory depth: 1M points per channel (standard)
Display: 8.5" WVGA color display
Vertical sensitivity: 1 mV/div to 5 V/div
Maximum input voltage: 190 Vpk
Time base range: 5 ns/div to 50 s/div
Waveform math: Add, subtract, multiply, FFT
Connectivity: USB 2.0, Supports memory devices and printers
Dimensions: 381 mm (15 in) x 204 mm (8 in) x 142 mm (5.6 in)
Weight: Net: 3.9 kg (8.5 lbs.)
