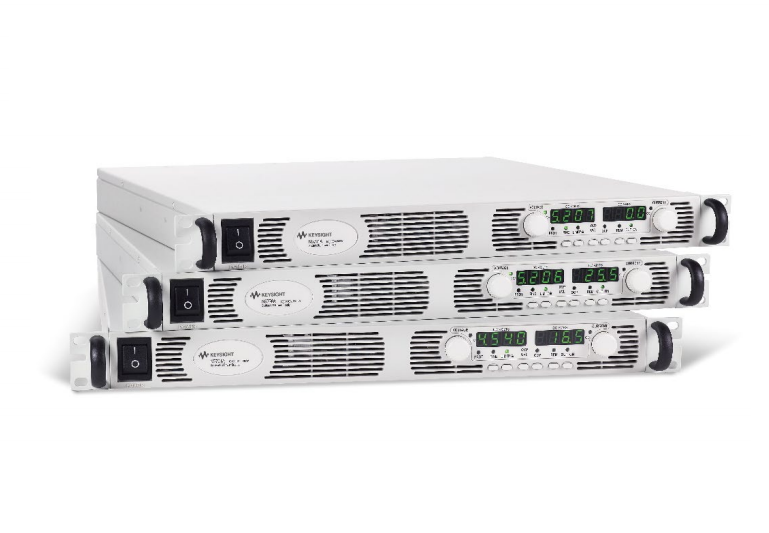

KEYSIGHT N5767A システムDC電源 (60V, 25A, 1500W)

• DC output ratings: 60V, 25A, 1500W

• Output ripple and noise: 60 mV p-p; 8 mV rms; 75 mA rms

• Programming accuracy: 0.05%+ 30 mV; 0.1%+ 25 mA

• Measurement accuracy: 0.1%+ 60 mV; 0.1%+ 75 mA

• Command response time: 55 ms

• Over-voltage protection: Range 5–66V; Accuracy 0.60V

• Operating temperature: 0°C to 40°C @ 100% load

• Storage temperature: –20°C to 70°C

• Operating humidity: 30% to 90% relative humidity (no condensation)

• Storage humidity: 10% to 95% relative humidity (no condensation)

• Interface capabilities: GPIB, USB 2.0, 10/100 LAN, Web server

• AC input:

Nominal input: 100 – 240 VAC; 50/60 Hz

Input current 750W: 10.5A @ 100 VAC nominal; 5A @ 200 VAC nominal

Input current 1500W: 21 A @ 100 VAC nominal; 11A @ 200 VAC nominal

Input range: 85 – 265 VAC; 47 – 63 Hz.

• Dimensions (excluding connectors, and handles) HxWxD: 43.6 x 422.8 x 422.8 mm

• Weight: (750W) 7 Kg; (1500W) 8.5 Kg
