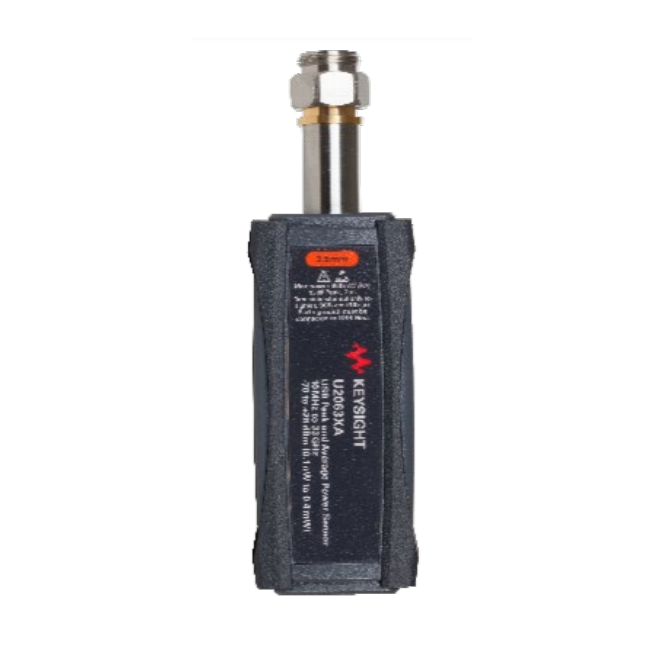

KEYSIGHT U2063XA Wide Dynamic Range Peak and Average Power Sensor (USB type, −70 ~ +26 dBm)
生産者: KEYSIGHT Model: U2063XA Price (exclude VAT) USD 15,169.20 Price (include VAT) USD 16,382.74 Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Frequency Range: 10 MHz to 33 GHz
Power range: −70 to +26 dBm
Connector type: 3.5 mm (male)
Maximum power
Average: +29 dBm
Peak: +32 dBm for < 10 µs duration
Voltage: ≤ 10 VDC
Zero and calibration: Internal zero and calibration supported
Maximum sampling rate: 20 Msamples/second, continuous sampling
Single shot bandwidth: 5 MHz
Minimum pulse width: 250 ns
Rise/fall time: ≤ 100 ns
Maximum capture length:
1 s (decimated)
6.5 ms (at full sampling rate)
Maximum pulse repetition rate: 2 MHz (based on 10 samples/period)
