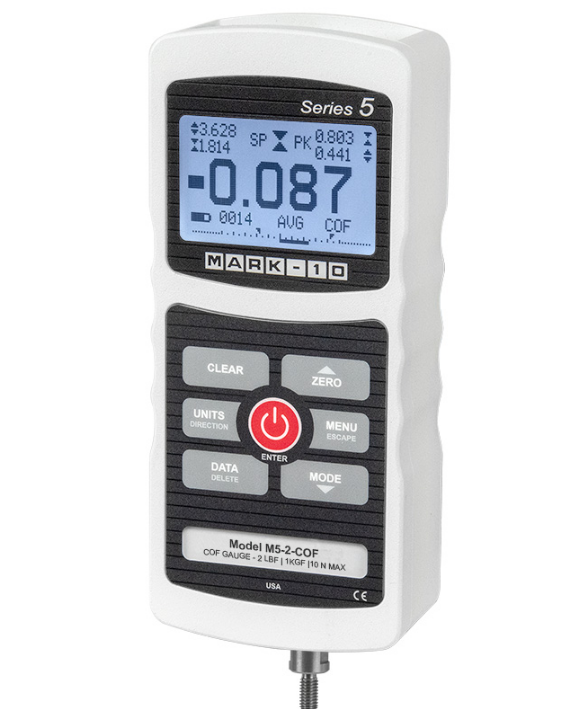

Mark-10 M5-2-COF Coefficient Of Friction Gauge (5 x 0.001 COF*, 2 x 0.0005 lbF, 32 x 0.01 ozF, 1 x 0.0002 kgF, 1000 x 0.2 gF, 10 x 0.002 N)

Type: COF gauge

Capacity x Resolution: 5 x 0.001 COF*, 2 x 0.0005 lbF, 32 x 0.01 ozF, 1 x 0.0002 kgF, 1000 x 0.2 gF, 10 x 0.002 N

Accuracy: ±0.1% of full scale

Sampling Rate: 7.000 Hz

Power: AC or rechargeable battery. Multi-step low battery indicator is displayed, gauge shuts off automatically when power is too low

Battery life: Backlight on / off: up to 7 / 24 hours of continuous use

Outputs:

USB / RS-232: Configurable up to 115,200 baud. Includes Gauge Control Language 2 for full computer control

Mitutoyo (Digimatic): Serial BCD suitable for all Mitutoyo SPC-compatible devices

Analog: ±1 VDC, ±0.25% of full scale at capacity,

General purpose: Three open drain outputs, one input

Set points: Three open drain lines

Safe overload: 150% of full scale (display shows “OVER” at 110% and above)

Weight: 1.0 lb [0.45 kg]

Included items: Carrying case with chisel, cone, V-groove, hook, flat, extension rod, universal voltage AC adapter,

battery, quick-start guide, USB cable, and NIST-traceable certificate of calibration with data

Environmental requirements: 40 - 100°F, max. 96% humidity, non-condensating
