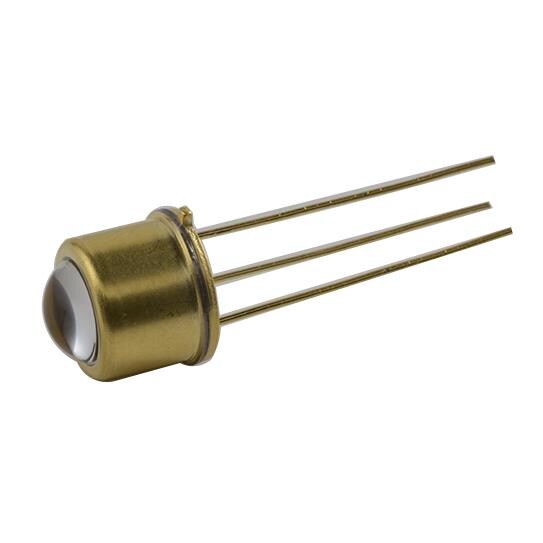

Marktech Optoelectronics MTD8000N4-T Phototransistors Photo Diode 880nm
生産者: Marktech Optoelectronics Model: MTD8000N4-T - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Width: 4.65 mm
Height: 6.2 mm
Length: 4.65 mm
Fall Time: 10 us
Rise Time: 10 us
Dark Current: 100 nA
Mounting Style: Through Hole
Peak Wavelength: 880 nm
Pd - Power Dissipation: 150 mW
Half Intensity Angle Degrees: 24 deg
Maximum Operating Temperature: + 100 C
Minimum Operating Temperature: - 30 C
Maximum On-State Collector Current: 50 mA
Collector- Emitter Voltage VCEO Max: 30 V
Collector-Emitter Breakdown Voltage: 30 V
Collector-Emitter Saturation Voltage: 200 mV
Read more
