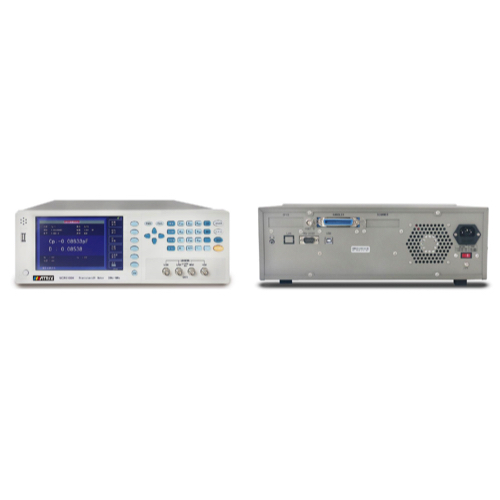

MATRIX MCR-8500H 高精度LCRメーター (20Hz-5MHz)

Test parameter: |Z|, |Y|, C, L, X, B, R, G, D, Q, θ, DCR

Test frequency: 20Hz-5MHz, 0.0001Hz resolution

Basic testingf accuracy: 0.05%

Equivalent circuit: In series, in parallel

Mathematical functions: Absolute deviation, percentage deviation

Range way: Automatic, hold, manual selection

Trigger mode: Internal, manual, external, bus

Measure speed (≥1kHz): High speed: The fastest is 200 times/second (customizable), middle: 12times/second,low: 3times/second

Average time: 1-255

Delay time: 0-6s, step is 1ms

Display mode: Open circuit/ short circuit / load

Calibration function: Direct reading, Δ%, V/I (Measured voltage/current monitoring)

Displayer: 800*480 RGB 7 inch 16:9 TFT LCD display

Testing signal:

Output impedance: 30 Ω, 1000, 10/100, 10/CC optional

Test signal level:

    Normal: 10mV~5V Accuracy: 10%, 1mV step

    Constant level: 10mV~1V Accuracy: 5%, 1mV step

DC bias source

    Internal: 5V~+5V(-100mA~+100mA) Built-in bias current source, 5%, 1mV step

    Matching:

    IV100mA:±10V(±100mA)DC bias source option

    IV1A:0~1 DC bias source option

Display range:

    |Z|, R, X: 0.01mΩ - 99.9999MΩ

    DCR: 0.001mΩ - 99.9999MΩ

    |Y|, G, B: 0.00001μS - 99.99995

    C: 0.00001pF - 9.9999F

    L: 0.00001μH – 99.9999kH

    D: 0.00001-9.9999

    Q: 0.00001-9999.9

    θ (DEG): -179.999°-179.999°

    θ (RAD): 3.14159-3.14159

Comparator function: 10 grades (9 grades qualified, 1 grade not qualified), otherwise with AUX grade

Storage: More than 100 sets of internal instrument settings for storage/call, U disk extension of more than 500 sets

Interface: Standard with RS232C, HANDLER, USB HOST; Matching with USB DEVICE, Headphone jack, Foot pedal interface, GPIB

Instrument size (WxHxD): 370x125x340

Net weight: 7.4 kg

Gross weight: 9.7 kg
