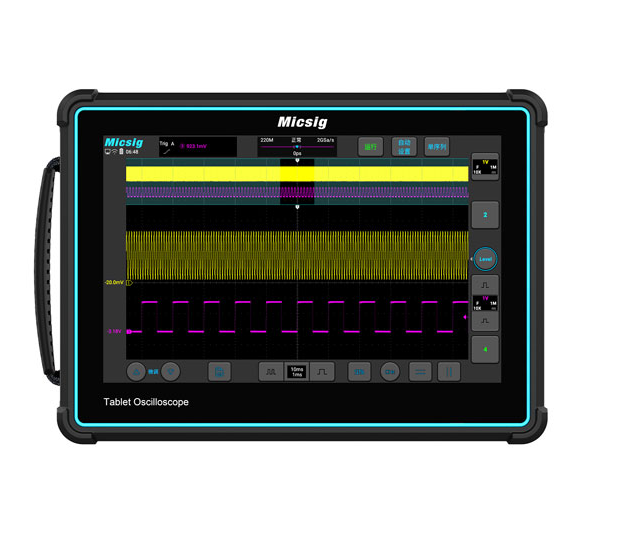

MICSIG TO3002 (N/A) デジタルオシロスコープ (300MHz; 2CH; 2GSa/s)
生産者: MICSIG Model: TO3002 (N/A) - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Bandwidth: 300MHz
Rise Time: ≤1.16ns
Analog channels: 2
Real-time sampling rate: 2GSa/s
Memory Depth: 220Mpts
Max. waveform capture rate: 300,000 wfms/s
Input sensitivity range: 1mV/div ~ 10V/div (1MΩ)；1mV/div ~ 1V/div (50Ω)
Bandwidth Filter: 20MHz, High Pass / Low Pass (to 30Hz)
Segmented Storage: Support，capture max 10,000 waveform events
Input impedance: 1MΩ/50Ω
Timebase range: 1ns/div ~ 1ks/div
Trigger types: Edge, Pulse Width, Logic, Nth Edge, Runt, Slope, Time Out, Video
Bus decoding: RS-232/422/485/UART, CAN, CAN FD, LIN, SPI, I²C
Interfaces: Wi-Fi, USB 3.0/2.0 Host, USB Type-C, Grounding, HDMI, Trigger out
Storage: 32G
Display: 10.1 Inch LCD capacitive touch display，1280*800 resolution，11*10 grids
Battery: 7.4V, 7500mAh Li-Ion battery
Dimension / Net Weight: 265*192*50mm / 1.9kg（with battery）
