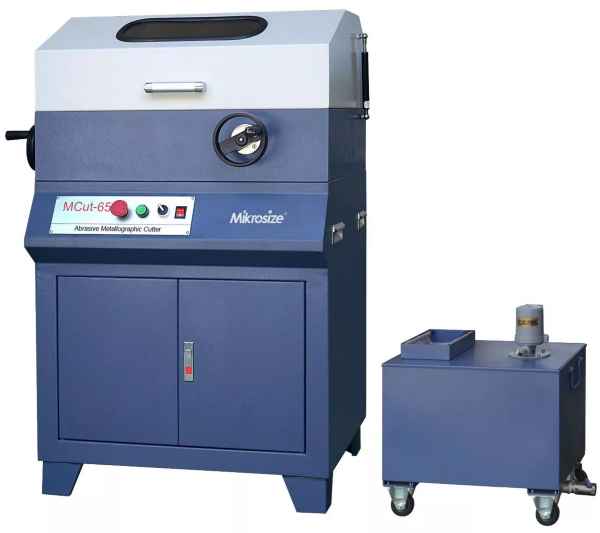

Mikrosize MCut-65 手動研磨金属組織カッター (Φ250×2×Φ32mm;1,5kW)

Cutting Method: Manual, Y-axis Feeding

Cut-off Wheel: Φ250×2×Φ32mm

Max. Cutting Capacity: 65×65mm

X -axis Travel: 45mm

Y -axis Travel: 270mm

Spindle Speed: 2800r/min

Motor Power: 1.5kW

Cutting Table: 130×190mm，T-slot 12mm

Clamping Fixture: Quick Clamp，Jaw Height 60mm

Power Supply: 380V, 50Hz，6A, Three-phase, Four-wire

Machine Dimensions: 700×520×1110mm

Net Weight: 170kg

Water Tank Capacity: 60L

Pump Flow: 25L/min

Water Tank Dimensions: 565×360×600mm

Water Tank Weight: 27kg

Packing List

Machine Mainframe: 1 set

Water Tank: 1 set

Cut-off Wheel: Φ250×2×Φ32mm Resin cut-off wheel: 1 pc

Cutting Fluid: 3kg: 1 bottle

Spanner: 36mm, 14×17mm, 24×27mm: each 1 pc

Water Inlet Pipe: 1/2 Metal pipe: 1 pc

Water Outlet Pipe: Φ32mm: 1 pc

Usage Instruction Manual: 1 copy
