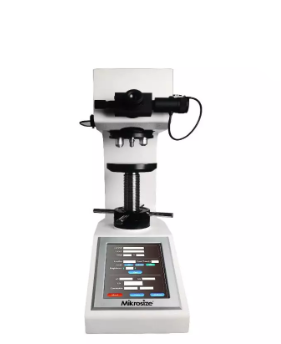

Mikrosize uVicky-120 マクロビッカース硬度計 (10X/20X, 120Kgf)

Objective Lens: 10X/20X. Both Lens for Observe&Measure

Eyepiece: 10X Digital Eyepiece with Built-in Encoder (15X Optional)

Measuring Magnification: 100X/200X

Customized Magnification: Yes

Test Force: 2.0Kgf, 3.0Kgf, 5.0Kgf, 10.0Kgf, 20.0Kgf, 30.0Kgf, 50.0Kgf, 60.0Kgf, 100.0Kgf, 120.0kgf

Customized Test Force: Yes

Test Force Standard: GB/T4340.1, GB/T4340.2,ASTM E92

Closed Loop System: Yes

Minimum Unit of Test: 0.01 μm

Precision Standard: JJG260-91,JISB7725,JISB7734,GB/T3430.2-99,ASTME-384,ISO6507-2,ISO4546

Conversion Scale: HRA, HRB, HRC, HRD, HRF, HV, HK, HBW, HR15N, HR30N, HR45N, HR15T, HR30T, HR45T

Conversion Standard: GB1172-99, ASTM

Turret: Auto

Hardness Test Range: 8~2900HV

Loading Method: Automatic Loading-Dwelling-Unloading

Dwelling Time: 1~99s

Test Space: Test Height: 180mm, Test Throat: 160mm

Data Output: 8’’ Touch Screen, Built-in Printer, RS232 Interface, Saved to U-disk in Excel Format (Measuring Software Optional)

Weight&Dimension

Machine Net Weight : 55Kg , Machine Dimension: 580x190x700mm

Power Supply: AC220V ± 5%, 50 to 60 HZ(110V is Available)
