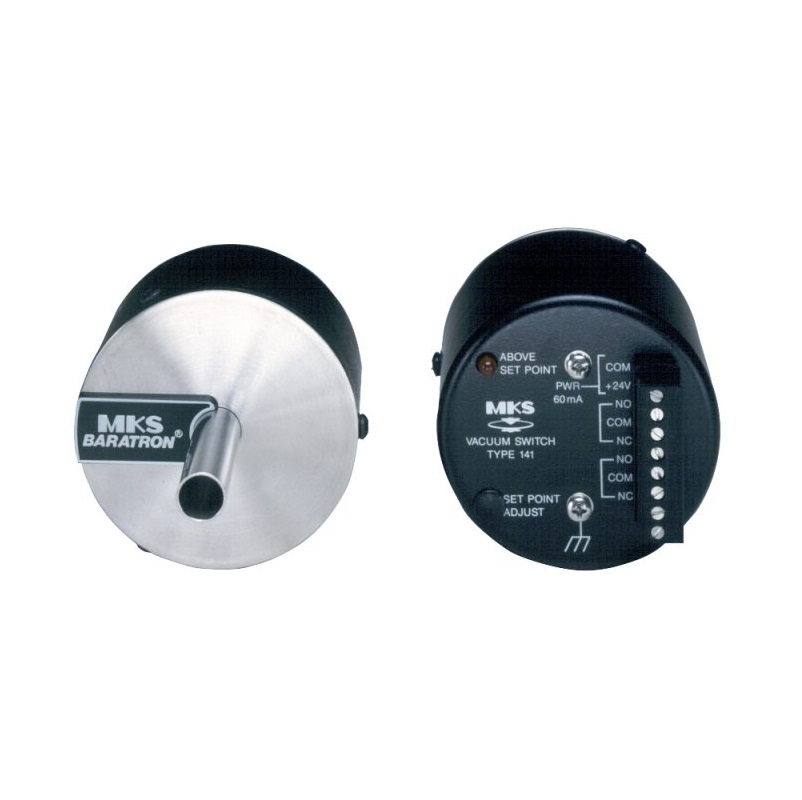

MKS 141A 絶対圧スイッチ (1Torr; Standard DPDT Relay)
生産者: MKS Model: 141A P/N: 141AA-00001AA - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Full Scale Range: 1 Torr
Set Point Range; 0.002 - 1 Torr
Sensor Temperature: Ambient
Fitting Type: 0.5 in. OD tube
Accuracy: ±0.5% of range (± temperature coefficients)
Zero Temperature Coefficient: ±0.04% of Full Scale/°C
Span Temperature Coefficient: ±0.06% of set point/°C
Operating Temperature Range: 0 - 50°C
Response Time: <20 msec from 0 to Full Scale
Relay Mode: Energizes above set point
Relay Contact Ratings: DPDT, 2 amps @ 30 VDC or 1 amp @ 120 VAC resistive
Exposed Materials: Inconel and 316 S.S.
Internal Volume: 7.0 cc
Overpressure: 120% of Full Scale or 35 psia (1000 mmHg), whichever is larger
Power Requirements: 20 - 30 VDC, 72 mA
For specific range please check the attachment below!
