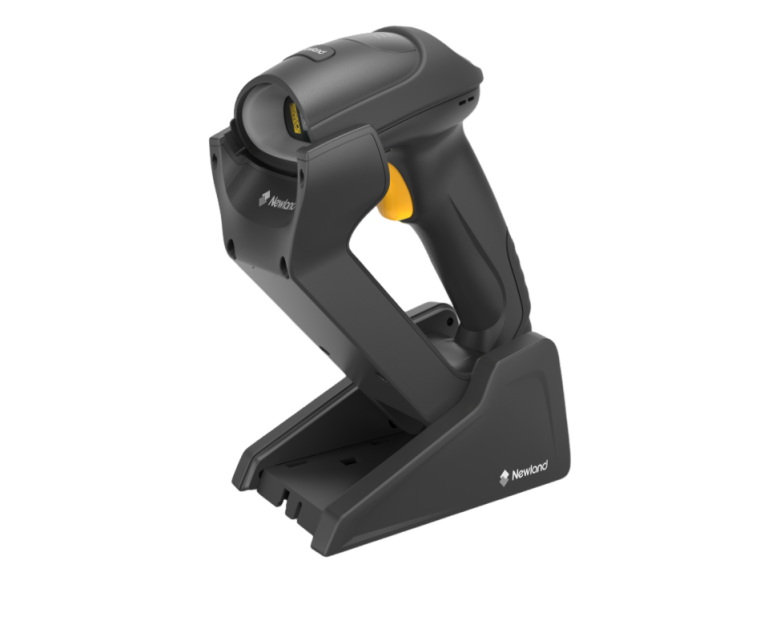

NEWLAND HR-2000BT コード付きハンドヘルドスキャナ (50-260mm)

Image Sensor: 640×480 CMOS

Illumination: White LED

Aiming: Red LED

Symbologies

2D: PDF417, QR Code, Aztec, Data Matrix, Micro PDF417, Micro QR, Hanxin Code.

1D: Code 11, Code 128, Code39, GS1-12 (UCC/ENA-128), AIM 128, ISBT 128,Codabar, Code 93, UPC-A, UPC-E, Coupon, GS1 Composite, EAN-13, EAN-8, ISSN, ISBN, Interleaved 2 of 5, Matrix 2 of 5, Industrial 2 of 5, ITF-6, ITF-14, Standard 2 of 5,China Post 25, MSI Plessey, Plessey, GS1Databar(RSS).

Resolution: ≥3mil

Typical Depth of Field

EAN-13: 50mm-260mm (13mil)

QR Code: 30mm-170mm (15mil)

Code 39: 50mm-115mm (5mil)

PDF 417: 50mm-120mm (6.67mil)

Data Matrix: 35mm-125mm (10mil)

Scan Angle: Pitch: ±60°, Roll: 360°, Skew: ±60°

Field of View: Horizontal 45°, Vertical 34°

Min. Symbol Contrast: 20%

Wireless

Communication Mode: Synchronous mode, asynchronous mode and batch mode

Radio Technology: Bluetooth 5.0

Communication Distance: 100m (direct line of sight in open air)

Memory Capacity: 16384 pieces

Battery: 2600 mAh lithium-ion battery

Expected Charge Time: 6 hours

Expected Battery Life: 16 hours of continuous operation (scan once per 6 seconds)

Physical

Interface: USB Type-A (Support USB-KBW, USB-CDC, HID-POS)

Operating: 5VDC±5%

Dimensions (L×W×H)

Scanner: 117.5×67.5×144mm;

Cradle: 140×90×144.5mm

Weight

Scanner: 209g;

Cradle:340.5g

Notification: Beep, LED, vibration

Environmental

Operating Temperature: -10°C to 50°C (14°F to 122°F)

Storage Temperature: -40°C to 70°C (-40°F to 158°F)

Battery Charge Temperature: 0°C to 45°C (32°F to 113°F)

Humidity: 5% ~ 95% (non-condensing)

ESD

±15 KV (air discharge);

±8 KV (direct discharge)

Drop

Scanner: 1.5m;

Cradle: 1.2m

Sealing: IP52

Certifications

Certificates & Protection: CE Red, FCC ID, RoHS 2.0, IEC62471
