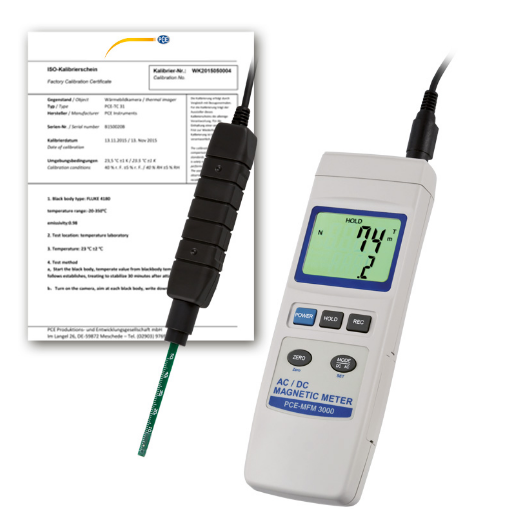

PCE MFM 3000-ICA 電磁界計 (0~3000 mT/0~30000 G; 0~1500 mT/0~15000 G; ISO Calibration Cert.)

- Static (DC) electromagnetic field (EMF) measurements:

Measurement range:

Range 1: 0 ... 300 mT / 0 ... 3000 G

Range 2: 0 ... 3000 mT /0 ... 30000 G

Resolution:

Range 1: 0.01 mT / 0.1 G

Range 2: 0.1 mT / 1 G

Accuracy: ± 5 % + 10 digits

Measurable frequencies: 50 Hz / 60 Hz

- Dynamic (AC) electromagnetic field (EMF) measurements:

Measurement range:

Range 1: 0 ... 150 mT / 0 ... 1500 G

Range 2: 0 ... 1500 mT /0 ... 15000 G

Resolution:

Range 1: 0.01 mT / 0.1 G

Range 2: 0.1 mT / 1 G

Accuracy: ± 5 % + 20 digits

Measurement rate :1 second

Measurement direction: uniaxial

Display: two-line LC display

Functions: Data hold / Max.- Min.- values

Operating conditions: 0 ... 50 °C / +32 ... +122°F / max. 85 % RH

Power supply: 9 V block battery

optional 9 V mains power adapter

Input current: ca. 15 mA

Meter dimensions: 198 x 68 x 30 mm / 7.80 x 2.68 x 1.18"

Sensor dimensions: 195 x 25 x 19 mm / 7.68 x 0.98 x 0.75"

Weight : 275 g / 0.61 lb

Delivery Scope:

1 x PCE-MFM 3000 electromagnetic field (EMF) meter

1 x External sensor

1 x 9V battery

1 x Carrying case

1 x User manual

1 x ISO calibration certificate
