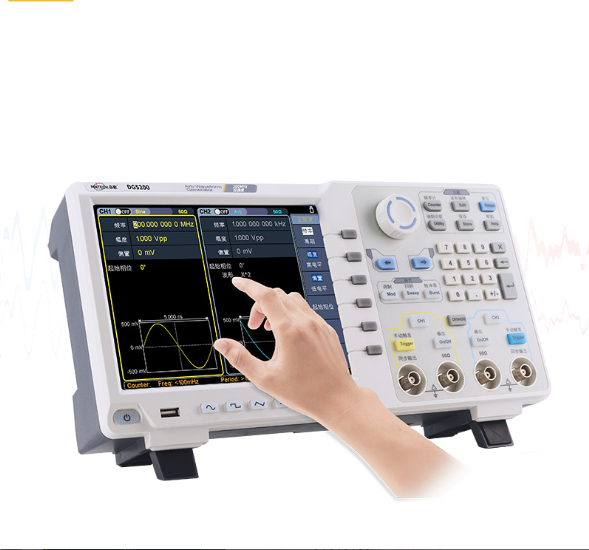

Pintech DG5200 ファンクション波形発生器 (Dual-channel, DC-200MHz)
生産者: Pintech Model: DG5200 - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Channel: Dual-channel(independent equivalent)
Bandwith: DC-200MHz
Real time sampling rate: 1.25 GSa/s
Waveform:
Standard waveform: sine,square,pulse,ramp,noise
Arbitrary Waveform: There are more than 150 kinds of Sinc, exponential rise,exponential fall,sin(x)/x,step wave,and others,total 150 built-in waveforms,and user-defined arbitrary waveform
Frequency characteristics:
Sine wave: 1μHz-200MHz
Fang Bo: 1μHz ~ 50MHz
Pulse wave: 1μHz ~ 25MHz
Sawtooth wave: 1μHz ~ 5MHz
noise: 120MHz (-3dB, typical)
Arbitrary Wave: 1μHz ~50MHz
Stability: ±1ppm, 0°C - 40°C
Input/output:
Display: 8 inch (800x600) High-resolution TFT LCD display
Method: External modulation, External trigger, External reference clock
Standard Interface: USB Host, USB Device (support USV-TMC), LAN
Dimension (LxHxW): 340x177x90
Weight: 2.5kg
