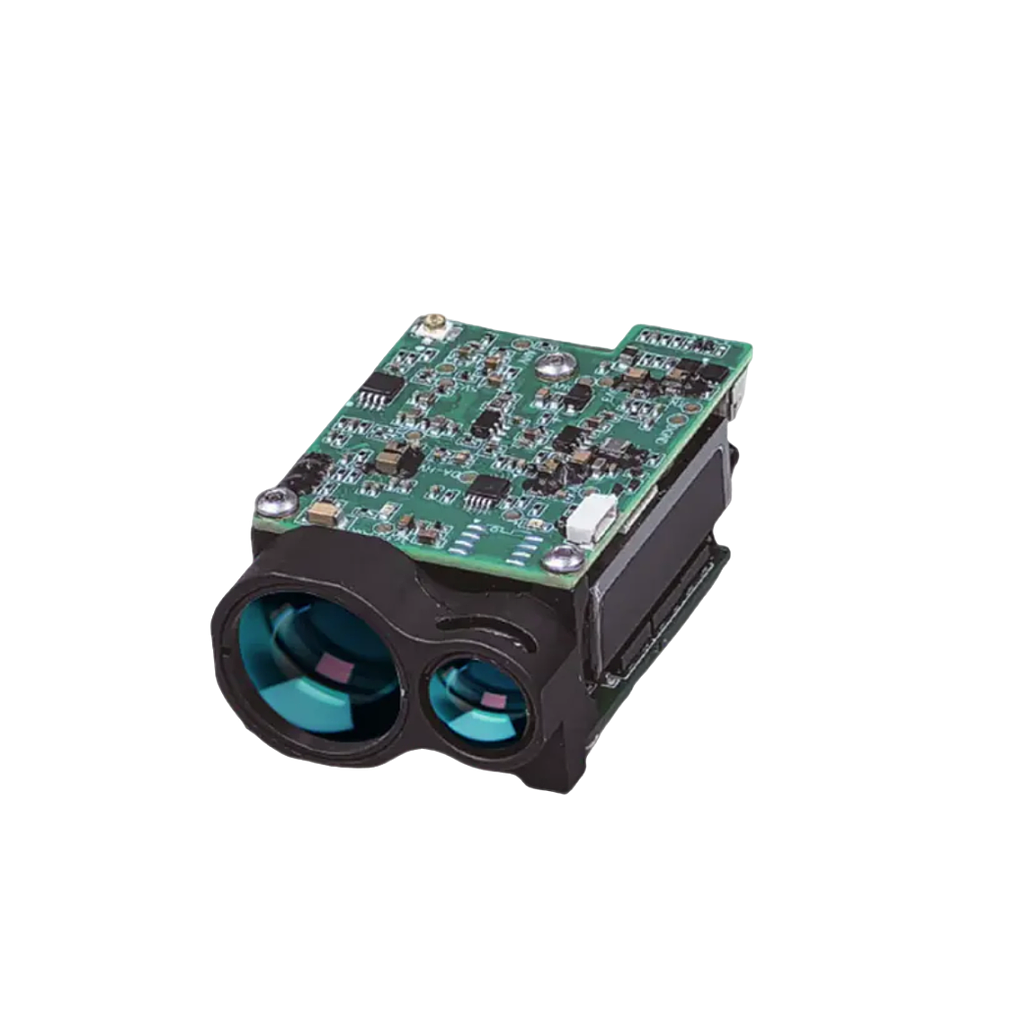

Raythink LR3000 Eye-Safe Laser Rangefinder Module
生産者: Raythink Model: LR3000 - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Basic Features
Laser Wavelength: 1535±5 nm
Eye-safe Class: Class 1
Maximum Range: Building: 4200m
Maximum Range: Car: 3500m
Maximum Range: Human (0.5×1.7m): 2000m
Maximum Range: UAV (0.2×0.3m): 1000m
Minimum Range: 20m
Measuring Accuracy: ±1m
Measuring Frequency: 1~10Hz (adjustable)
Laser Emitting Aperture: Φ7.5mm
Laser Divergence Angle: ~0.6mrad
Receiver Aperture: Φ16mm
Detection Probability: ≥98%
False Alarm Rate: ≤1%
Multi-Target Detection: Up to 3
Range Resolution: 20m
Electrical Characteristics
Communication Interface: UART (TTL_3.3V)
Baud Rate: 9600/57600/115200 (default)
Power Supply Mode: DC4.5-16V
Power Consumption: ≤2W
Peak Power Consumption: 7w@12V
Standby Power Consumption: ≤1mw (Power ON < 0.3V)
Physical Characteristics
Weight: 32±1g
Dimensions: 48×31×25mm
Shock: 1,200g, 1ms
Vibration: 5~50~5Hz, 1 octave/min, 2.5g
Environment Adaptability
Operating Temperature: -40℃~+70℃
Storage Temperature: -55℃~+75℃
