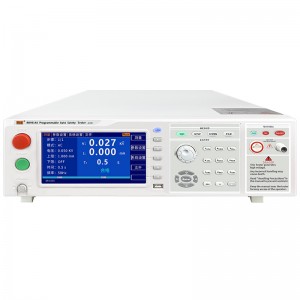

Rek RK911A プログラム制御AC/DC耐圧試験器 (AC: 5.00kV, DC: 6.00kV, AC:100mA, DC: 50mA)

ACW

Output voltage range: (0.05 ~ 5.00)kV

Maximum output power: 500VA(5.0kV 100mA)

Maximum rated current: 100mA

Output waveform: Sine Wave DDS+ Amplifier

DCW

Output voltage range: (0.05 ~ 6.00)kV

Maximum : 300VA

Out put power: 6.0kV 50mA

Voltmeter

Range: AC(0.05 ~ 5.00)kV DC(0.05~6.00)kV

Accuracy:± (1%+3 words)

Setting error: ± (1%+3 words)

Ammeter

Measurement range

AC: 0~100mA DC: 0~50mA

Measurement accuracy: ± 1%+2 words

Timer

Range: 0.0-999.9S

Minimum resolution: 0.1S

Test time:0.1S-999S OFF= continuous test

Arc detection: 0-20mA

Output frequency: 50Hz/60Hz

Operating temperature: 0-40℃ ≤75%RH

Power requirements: 110/220 ±10% 50Hz/60Hz ±3Hz

Interface: RS232, USB, PLC, LAN, RS485

Screen: 7-inch TFT 800*480

Dimensions (D × H × W): 670*245*440mm

Weight: 63KG

Random standard accessories: Power cord RK00004, RS232 communication cable RK00002, RS232 to USB cable RK00003, USB to square port cable RK00006, RK26003A test cable, instruction manual (electronic version), RK00048 test cable, host computer (official website download), RK8N+ high voltage stick

Optional accessories: RK00031 USB to RS485 Female serial port cable industrial grade connection cable 1.5 meters long, RK00070 serial port option LAN port

contact inspection: optional on or off
