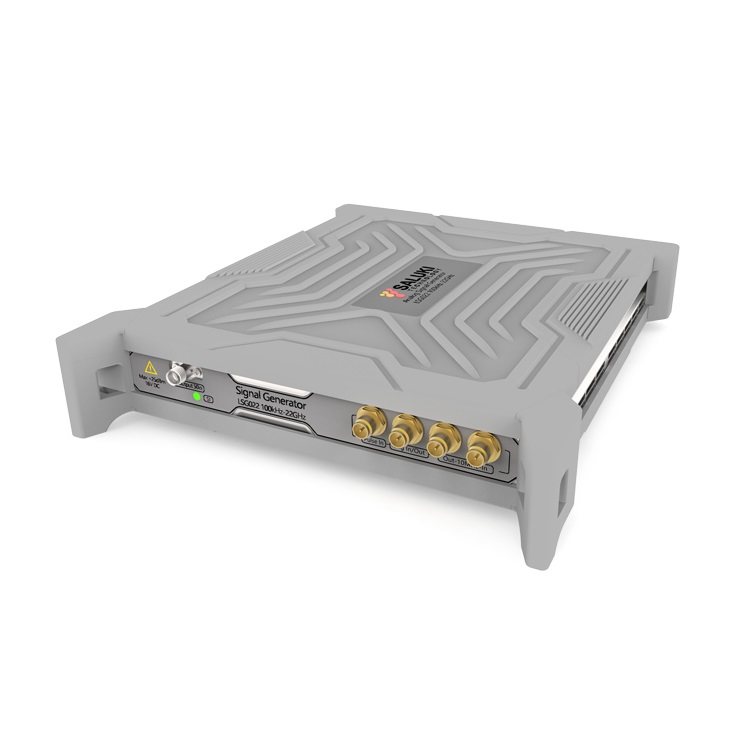

SALUKI LSG022 アナログ信号発生器 (100 kHz ~ 22 GHz)
生産者: SALUKI Model: LSG022 品物を保証します: 12 Month - 連絡先
Call for the best price
Hanoi city: (024) 35.381.269
Danang city: (023) 63.747.711
Bac Ninh city: (0222)730.39.68
HCM city: (028) 38.119.636
Frequency Range: 100 kHz to 22 GHz
Frequency Resolution: 0.1Hz
Frequency Switching Speed: 10ms (CW mode)
Internal Reference Output: 10MHz, ≥ +4dBm ( nominal into 50Ω load)
External Reference Output: 10MHz, Sine
Sweep Mode: Step sweep, List sweep
Dwell Time: 1ms to 100ms
Trigger Mode: Free run, External, Timer, Bus (USB)
Output Power Range: -65dBm to +15dBm
Output Power Resolution: 0.5dB
SSB Phase Noise (CW Mode): -104dBc/Hz @ 10kHz, 10GHz
Harmonic (CW Mode):
100kHz – 300MHz: ≤ -30dBc
300MHz – 6GHz: ≤ -35dBc
6GHz – 15GHz: ≤ -45dBc
15GHz – 20GHz: ≤ -55dBc
Analog Modulation: FM, Pulse, Narrow pulse, Internal pulse generator
RF Output Connector: SMA (female)
Remote Programming Interface: USB 2.0
Power Supply: 12 VDC, maximum 15 watts
Dimension: 159(W) × 37(H) × 190(D) mm
Weight: ≤ 800g
