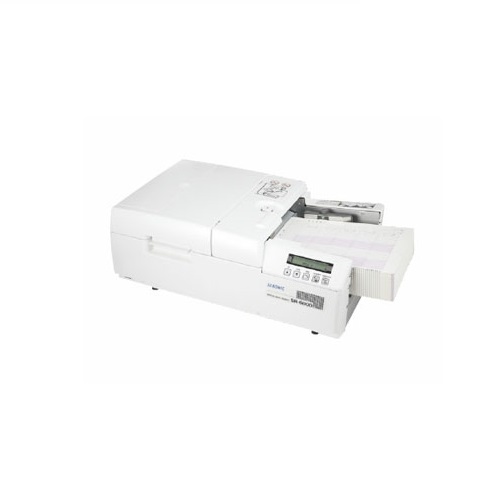

SEKONIC SR-6000 光学式マークリーダー (48 x 109)

Main functions

        Reading Speed (per hour): 6,000 pages

        Input Process: ADF / Hand Feed (Adjusted by Operaton mode)

        Form Input: 500 forms

        Form Output: 500 forms

        Mark writing implements: Pencil (infra-ed ray) / Pen (Visible red ray-Option)

        Read Technique: Reading reflective sensor

        Number of read head: 1 (Standard) or 2 (Option)

        Mark Discrimination: 256 degrees (16 steps of discrimination)

        Calibration: Automatic

        Mark Shapes: Rectangle, Ovals, and Circles,

Connect with PC (Interface)

        Communication Interface: USB 2.0 / RS-232C serial interface

        Baud rate (Only RC-232C mode): 9,600 to 115,200 bits / second

Forms

        Paper Thickness: 72kg-135kg (84g/m²-157g/m²)

        Paper Size: 63.5 x 110 to 228.6 x 355.6 (mm) / 2.5 x 4.33 to 9 x 14 (inch)

        Mark Position: 5,323 mark positions (per each page)

        Maximum Scan Area: 48 x 109

Operating conditions

        Temperature: 5-35°C (41-95°F)

        Relative Humidity: 30-80%

        Power requirements

        Noise: 60db

        Dimensions (W x H xD mm): 365 x 227 x 575 (mm)

        Weight: 17kg

Optional functions

        Backside Reading: Option

        Select Stacker: Option (SR-3500)

        Printer: Option (SR-3500)

        Barcode Reader (Horizontal): JAN/EAN/UPC/NW7/ITF/CODE39/EAN128/CODE93

        Barcode Reader (Vertical): JAN/EAN/UPC/NW7/ITF/CODE39/INDUSTRIAL2OF5/COOP2OF5

        Pen & Pencil Reading: Option (Black and Blue Ball-Point-Pen)

        Utility Software: "Markview"
